48mm Long Shaft RS-775 Motor DC 6V 12V 18V 24V 7750RPM Low Speed Large Torque Engine DIY Electric Tool Toy Model

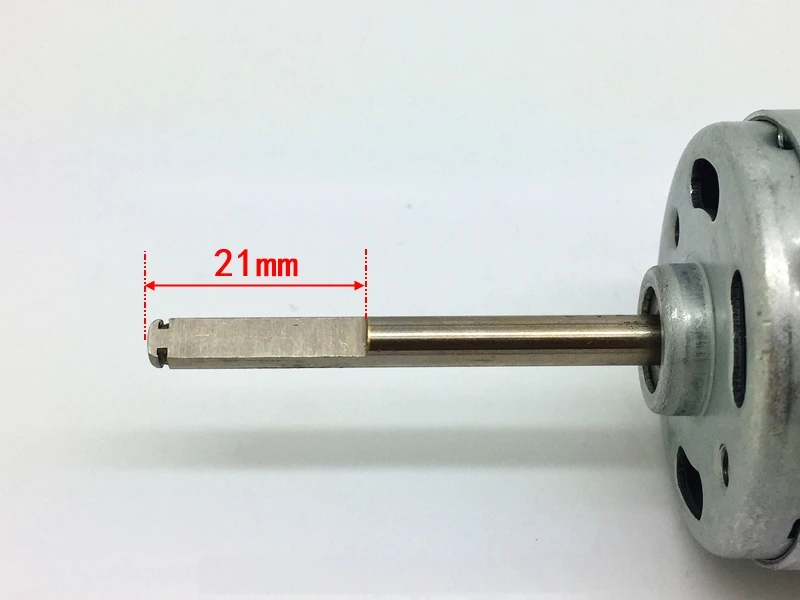

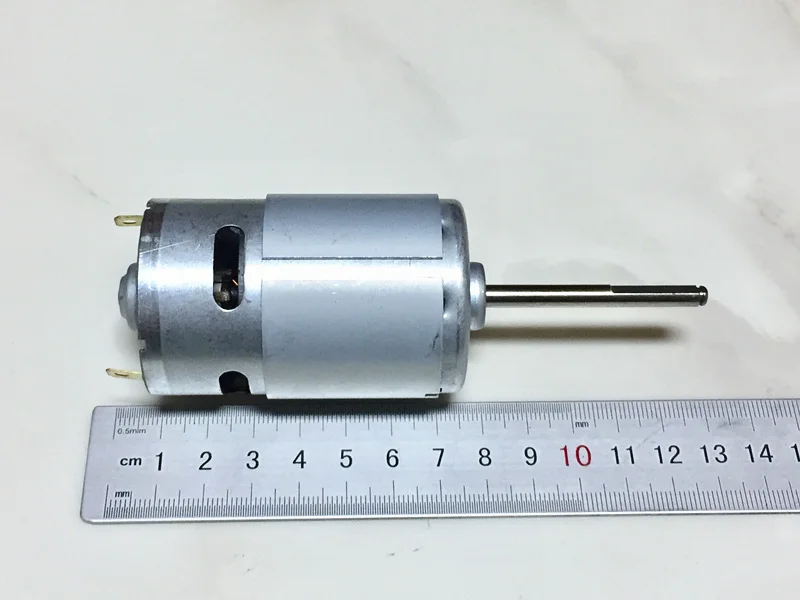

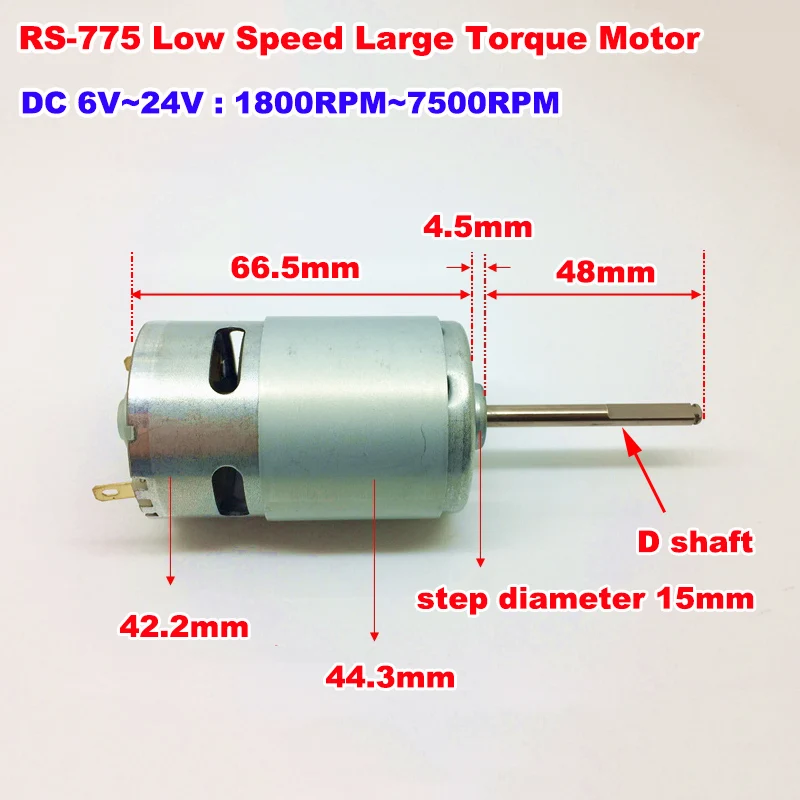

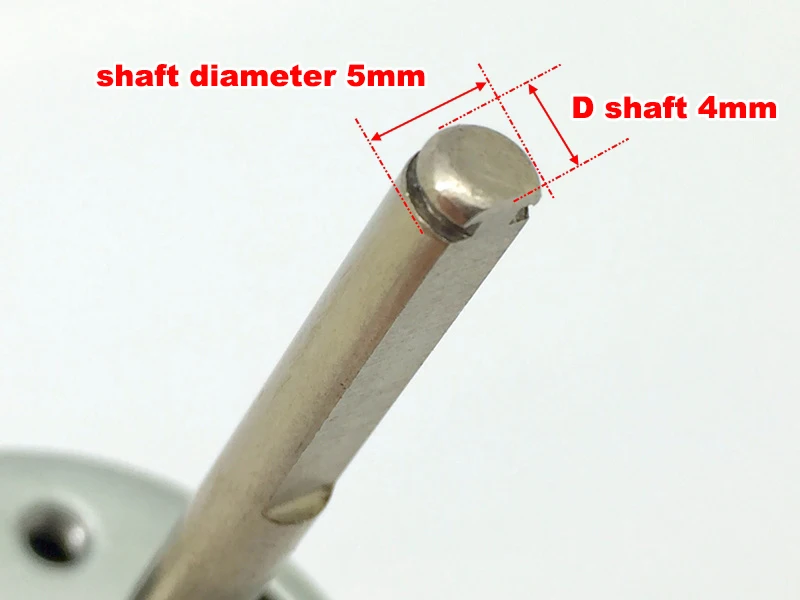

Specification:1.Model: RS-775 Motor2.Voltage range: DC 3V-24V3.Test data: Voltage:3V No-load current:80mA Stall current:0.6A No-load speed:850RPM Voltage:6V No-load current:90mA Stall current:1.2A No-load speed:1800RPM Voltage:12V No-load current:100mA Stall current:2.6A No-load speed:3700RPM Voltage:18V No-load current:120mA Stall current:4.0A No-load speed:5700RPM Voltage:24V No-load current:160mA Stall current:5.0A No-load speed:7750RPM4.Motor diameter: 42.2mm(with cover 44.3mm)5.Motor length: 66.5mm6.Output shaft diameter: 5mm(D shaft 4mm)7.Output shaft length: 48mm8.Weight: 350g
We are the real original factory, all parameters/specification/size can be custom-made for your requirement. Talk with our sales engineers team now ~
Email: chinaok321@gmail.com | Skype: chinaok321 | WhatsApp/WeChat/Mob: 8613713792667
Maxon Faulhaber Motor DC Motor China Manufacturer Factory Coreless Brushless Motor Electric Micro Motor BLDC Flat Brush Motor
Custom Coreless DC Motor Gearbox Brushless Brush Micro Electric Motor 2610 Small Vibrating Motor
DC Drive Rotary Tattoo Machine Motor DC Motor for Tattoo Pen Swiss Flat Motor Slotless Motor China Factory Manufacturer
Custom Range
Performance: customizable in continuous operation range
Ball Bearing: preload
Flange: standard front and real flange / custom flange
Axis: length / diameter / stepped shaft / double outlet shaft / hollow shaft
Application Scenarios:
DIRECT SELLING BY MANUFACTURER SUPPORT PROCESSING CUSTOMIZATION
Our products are widely used: label printer,label stripper,barcode printer, robot Electronic door locks,printers,electronic monitors,display shelves, counters, vending machines and automotive parts Intelligent kitchen and sanitation, household appliances, medical equipment, communication equipment, industrial equipment, instruments and meters,aviation models,many industries such as robot, personal care,security camera,digital electronics, our motor factory can meet different needs of customers customized.
