DC3V 3.7V 0408,412,612,615,617.716,720,816,8520,1020,8523 Ultrahigh Speed Coreless Motor RC Drone Tail Engine UAV Accessories
Tips1:The numbers of different models represent different sizes of motors;for example, 412 is 4mm * 12mm, 8520 is 8.5mm * 20mm
Type A is a red and blue line, and type B is a black and white line.
All motors can be CW or CCW.
Tips2:
There are propellers in our shop, and there are more discounts when buying motors and propellers together.
Model: 0408
[Diameter]: 4mm
[Length]: 8mm
[Speed]: about 48,000 rpm at 3V
[Motor shaft diameter]: 0.7mm
[Motor shaft length]: 2mm
[wire length]: about 35mm
Model: 412
Output shaft: 4 mm
Radial shaft: 0.7 mm
Voltage: 3.7V
Speed: about 55000 rpm
Model: 612
Output shaft: 0.8 MM
Output shaft length: 5.5 MM
Weight: 1.4 g
Voltage: 3.7 V
Speed: about 50000 RPM
Model: 615
Output shaft: 0.8 MM
Output shaft length: 6-7 MM
Line length: 55 MM
Weight: 2 g
Voltage: 3.7 V
Speed: around 45000 RPM

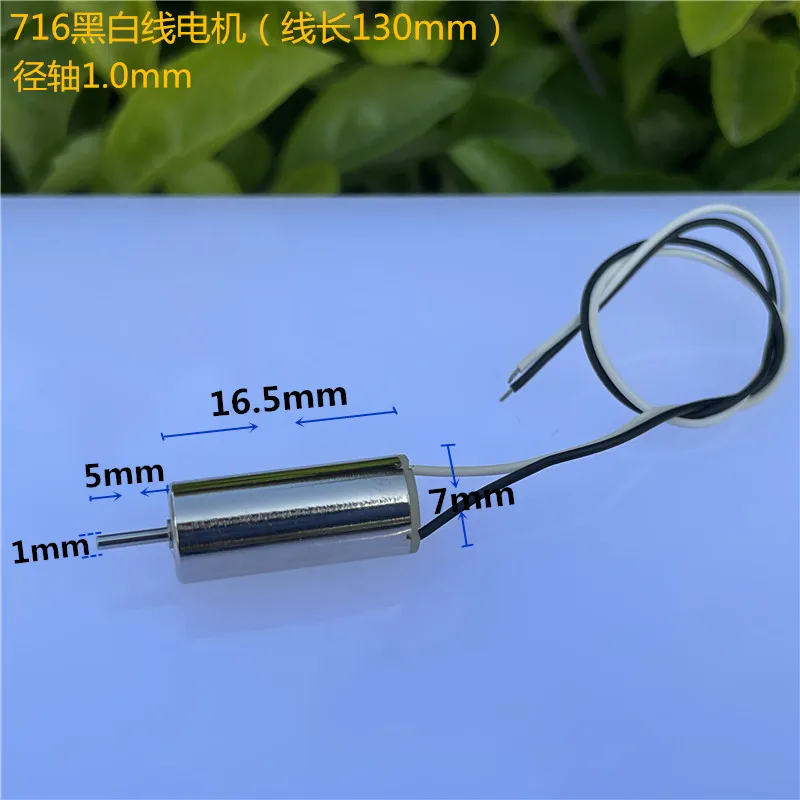

Model: 716
Body diameter 7mm
Body length: 16.5mm
Output shaft: 1 mm
Output shaft length: 5mm
Lead length: about 65 mm
Voltage: 3.7 V
Speed: 50000 RPM
Weight: about 3g

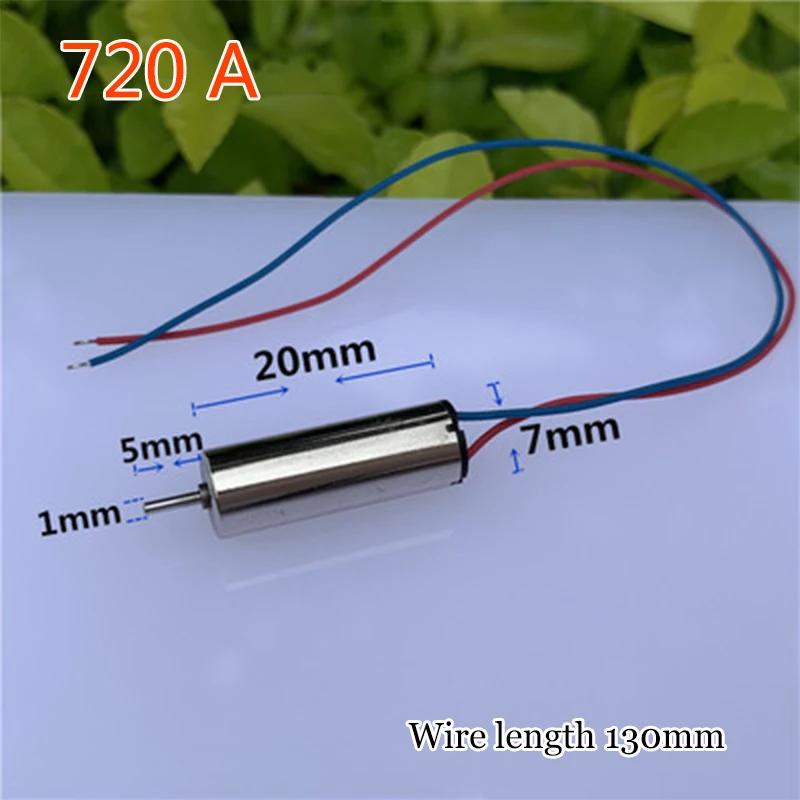

Model: 720
Voltage: 3.7V
Current: about 120ma
Speed: about 50000
Model: 816
[Size]: 8 mm * 16.5 mm
[Voltage]: 3.7V
[Shaft diameter]: 1 mm
【Shaft Length】: 5 mm
[Line length]: 130mm
[Weight]: 4.2 grams
【Current】: about 150 ma
[Speed]: No-load 50000 rpm

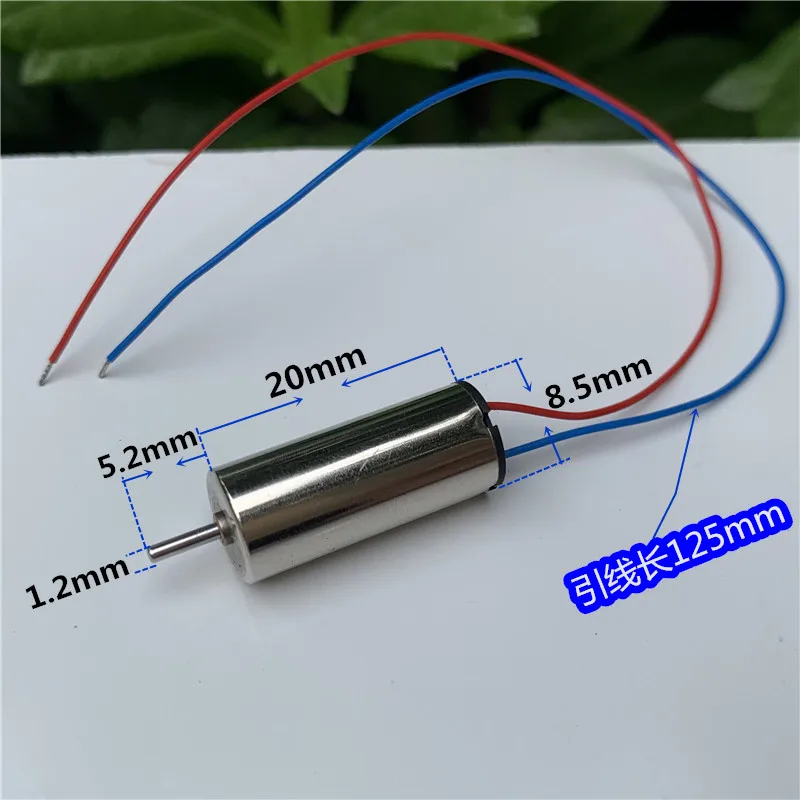

Model: 8520
Weight: 5.2 g
Voltage: 3.4 V
No-load current: 240ma
Speed: about 52000 rpm

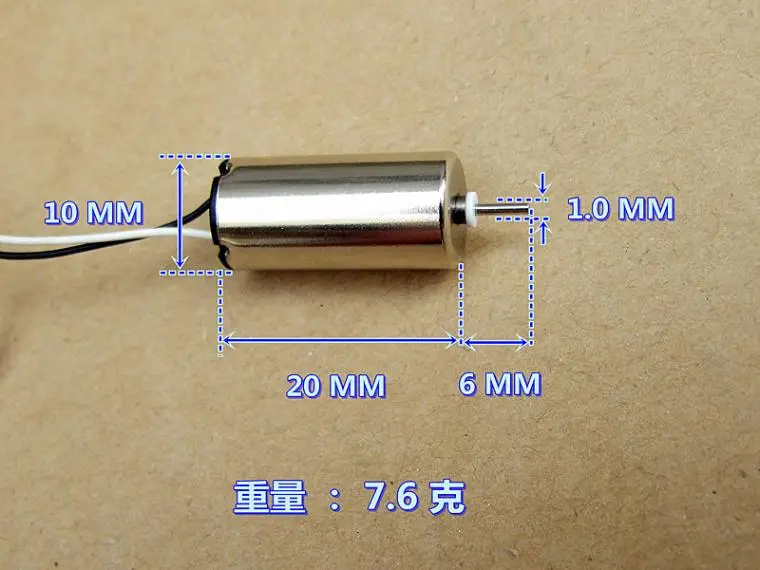

Model: 1020 ( Change new style)
Size: 10mm * 20mm
Diameter: 1 mm
Shaft length: 5 mm
Voltage: 3.7 V
Speed: about 40000rpm
Lead wire: 150mm
Weight: 7.6g

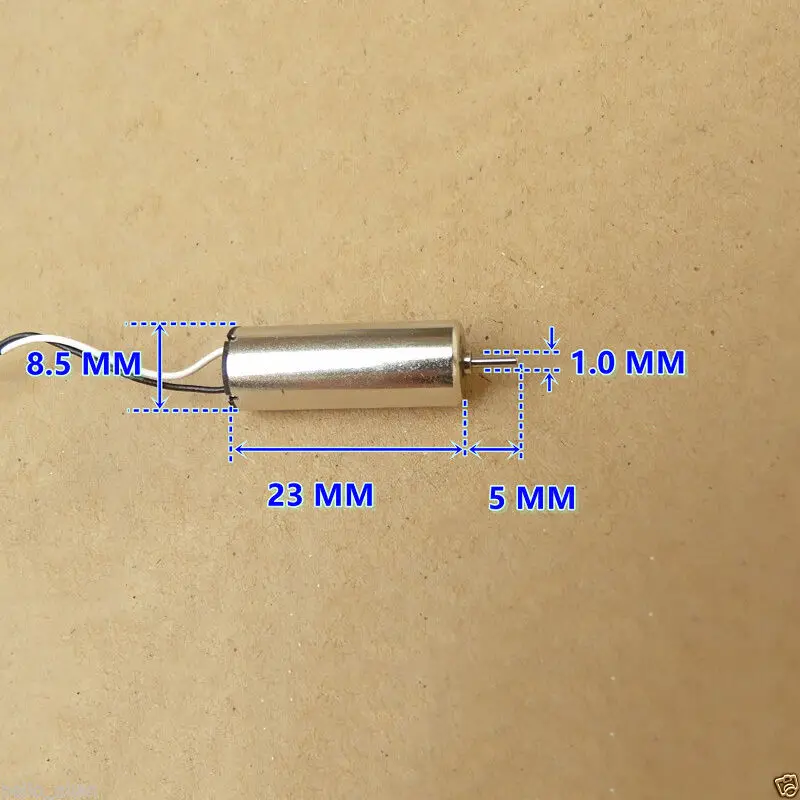

Motor parameter: 85231.Motor diameter: 8.5MM2.Motor length: 23MM3.Output shaft diameter: 1.0MM4.Output shaft length: 5.5MM5.Cable length: 75MM6.Weight: 6g7.Voltage: 3.7V8.Speed: 40000RPM9.Notice: This motor can not be uesd for 4.2V,voltage range is 3V-3.7V.
