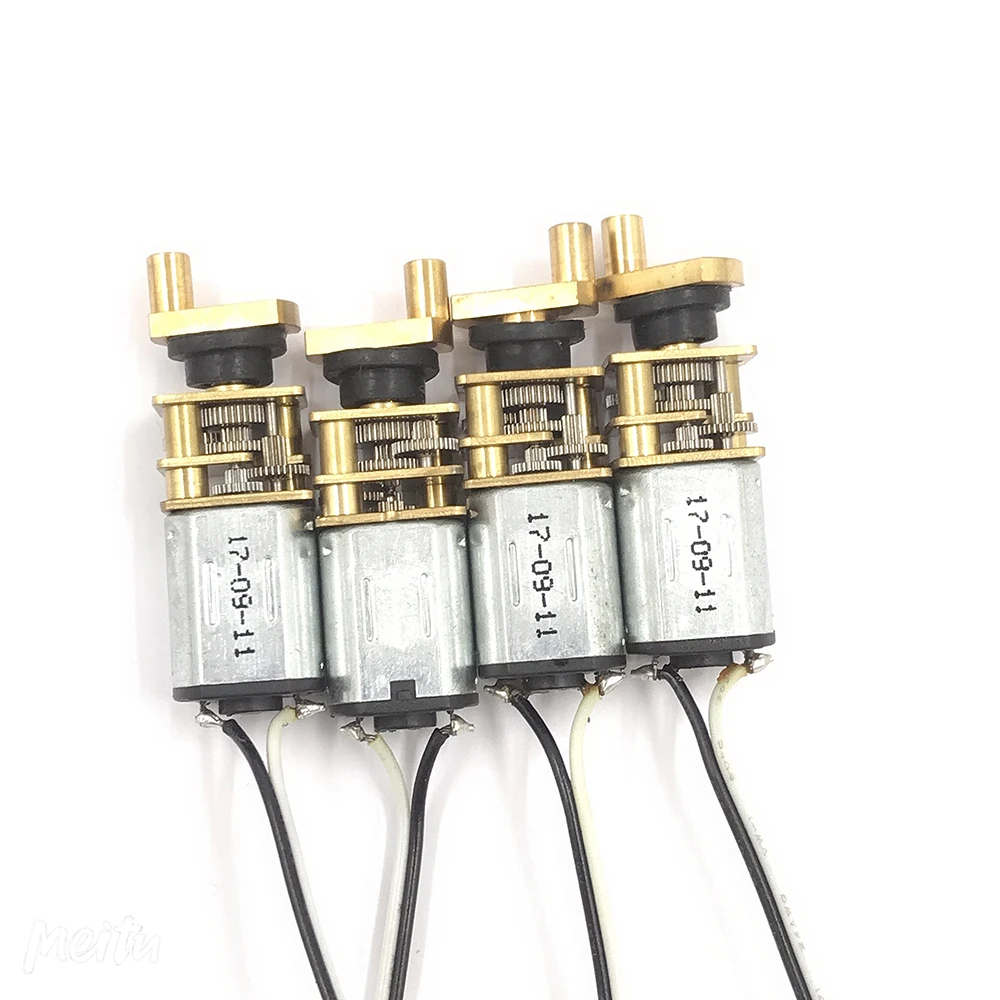

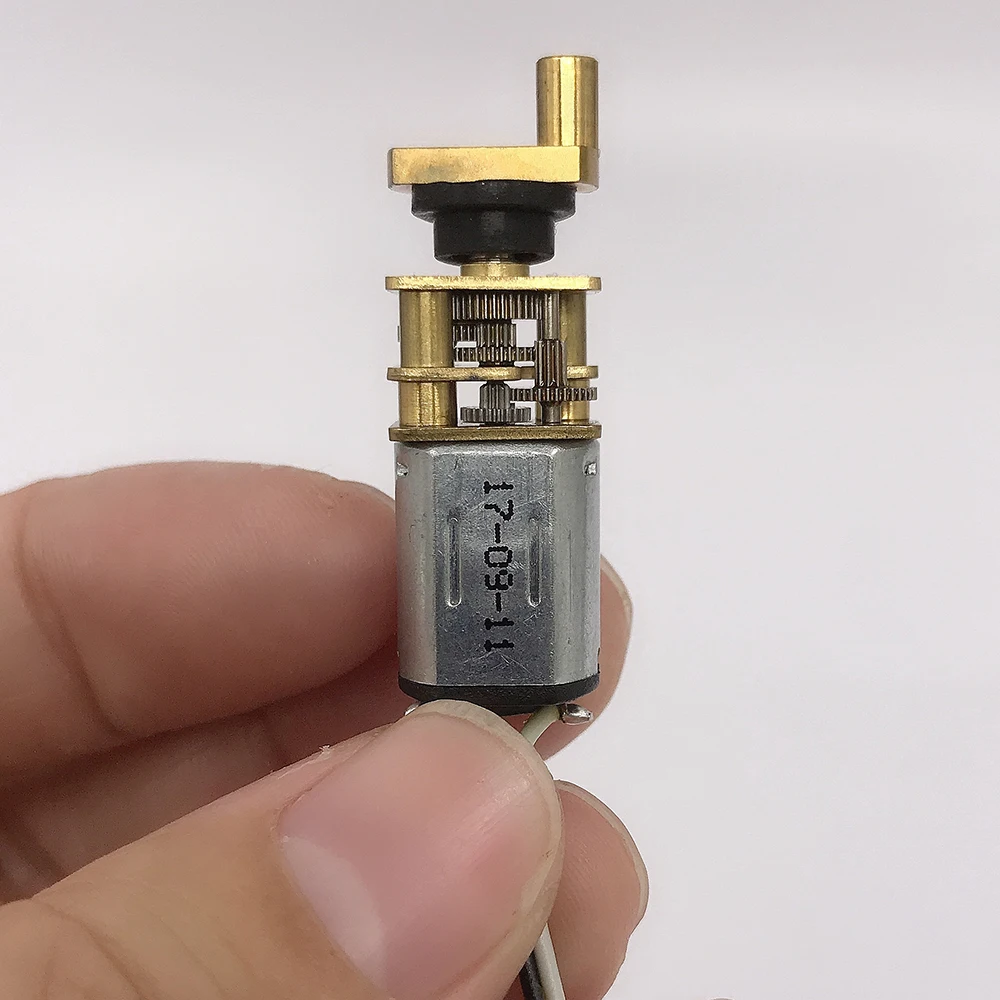

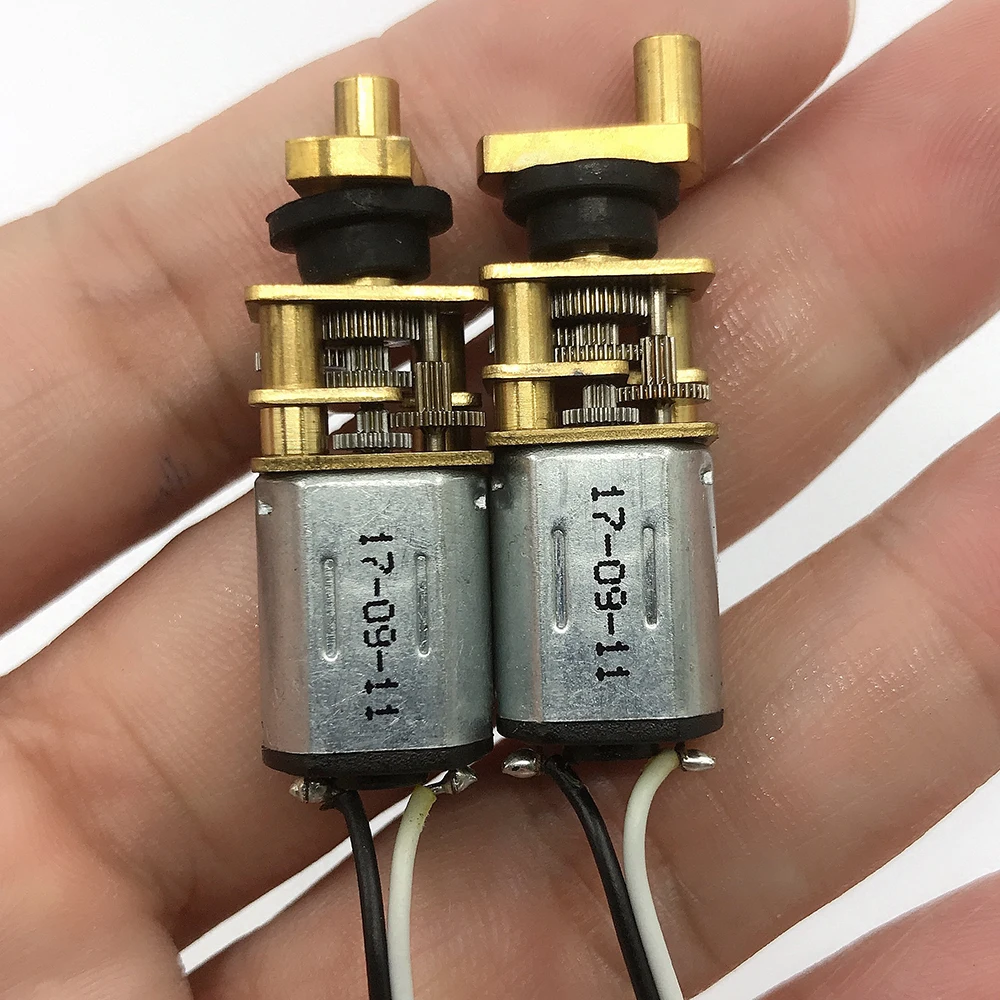

1PC DC 3V-6V 5V 50RPM Mini N20 Full Metal Gear Motor With Swing Arm Shaft Gear Box For Fingerprint Lock

$4

Description

Specification:

1.Voltage range: DC 3V-6V
2.Rated voltage: DC 5V
3.Motor size: 10*12*15mm(N20 motor)
4.Gearbox size: 10*12mm

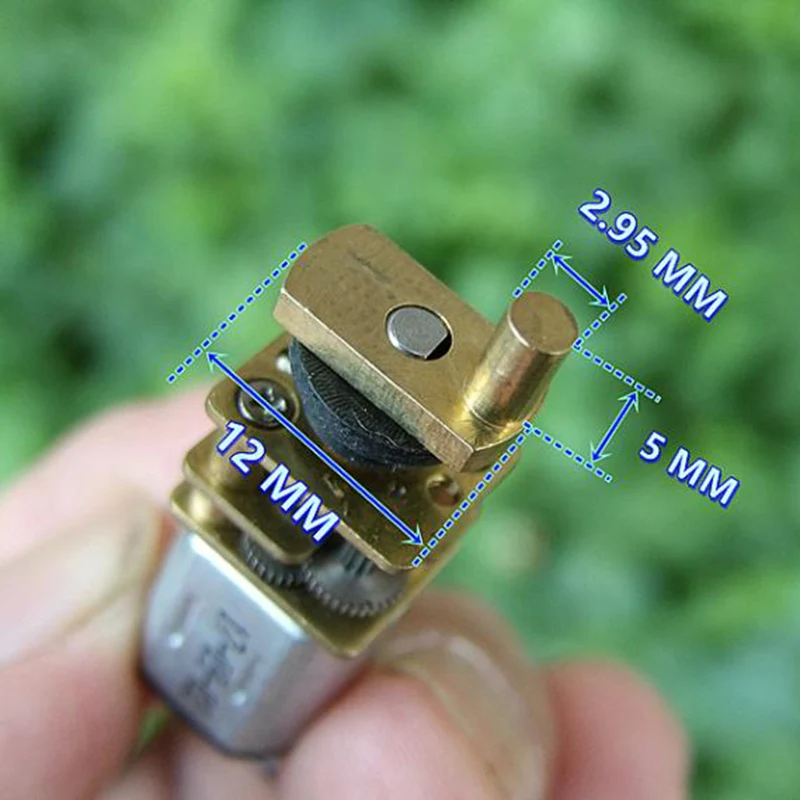

5.Output shaft diameter: 3mm(flat shaft 2.45mm)
6.Gear ratio: about 1:256
7.Weight: 12g
8.Test data:
  Voltage:DC 3V  No-load speed:30RPM  No-load current:25mA
  Voltage:DC 5V  No-load speed:50RPM  No-load current:36mA  Rated load:200g.cm
  Voltage:DC 6V  No-load speed:60RPM  No-load current:45mA
422IMG_1737
O1CN01iolkhY1z5hYBRWMQ6_!!920426663

Package Include:

Gear Motor x 1pc


We are the real original factory, all parameters/specification/size can be custom-made for your requirement. Talk with our sales engineers team now ~
Email: chinaok321@gmail.com |  Skype: chinaok321 | WhatsApp/WeChat/Mob: 8613713792667
