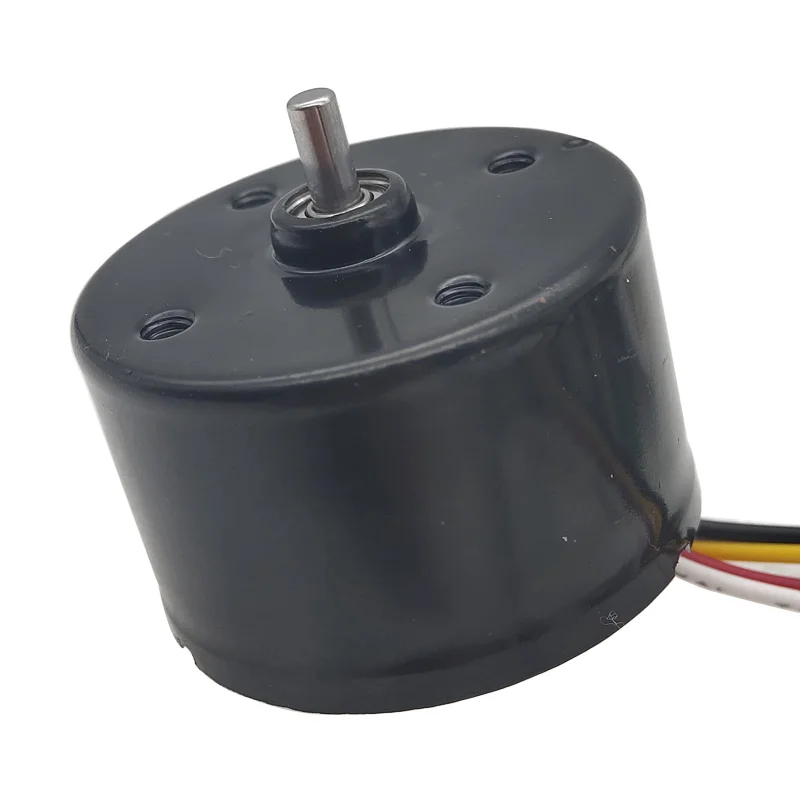

Introduction of the motor

1. Name of the motor : Mini BLDC motor in dc motor with 12v 24v

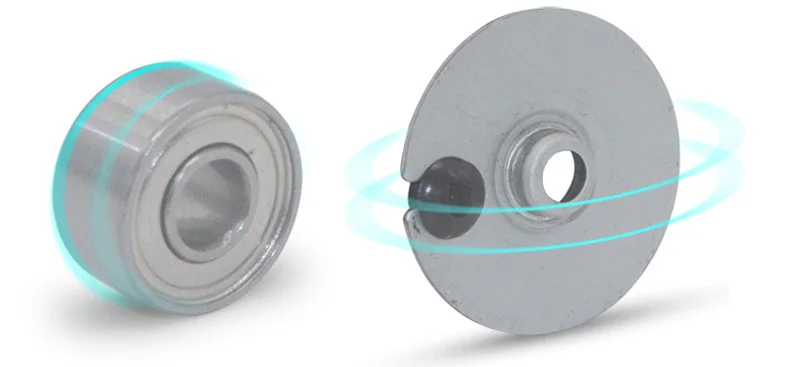

2. The life of a brushless motor is about 10 times that of a brushed motor, motor life exceeds 10,000 hours, can greatly reduce the maintenance cost of the project. If the load of the project does not exceed the rated torque of the motor, then the motor is ideal for use in smart devices with long life requirements

3. Prominent feature : The motor has a built-in Hall drive ; long life; stable and reliable performance; low noise; support reverse; With FG signal speed measurement function; motor can stop rotating immediately after turning off the power, with brake function; Motor with PWM regulation speed function ; Overcurrent protection function 1.5A ; Over temperature protection 80 degrees Celsius ; the brushless motor is controlled by the frequency conversion technology, which is more energy-efficient than the carbon brush motor.

4. Rated voltage have DC 12V and DC 24V

5. DC 12V ; No load speed 3000 rpm/min

6. DC 24V ; No load speed 6000 rpm/min

7. If you choose DC 12V ; The input voltage of the motor should not exceed 16V, otherwise the motor will burn out.

8. Direction of rotation of the motor: CW Or CCW ; Support Reversed

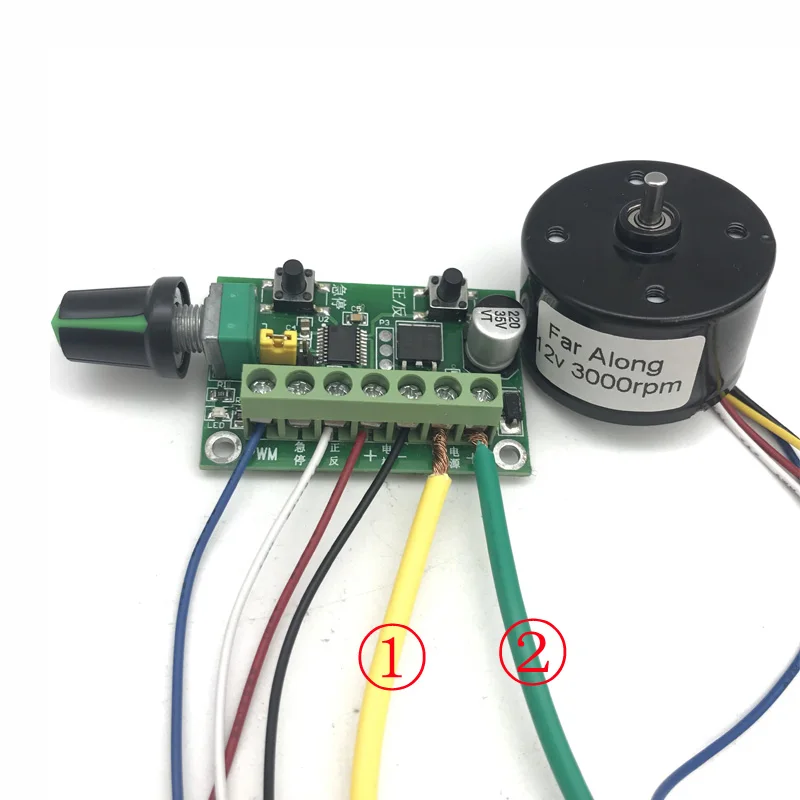

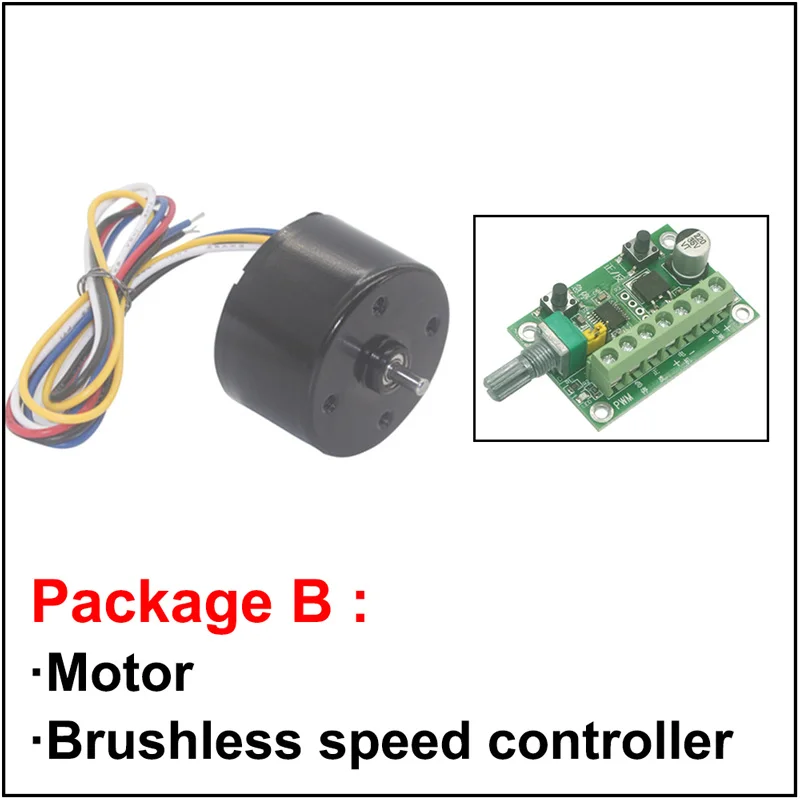

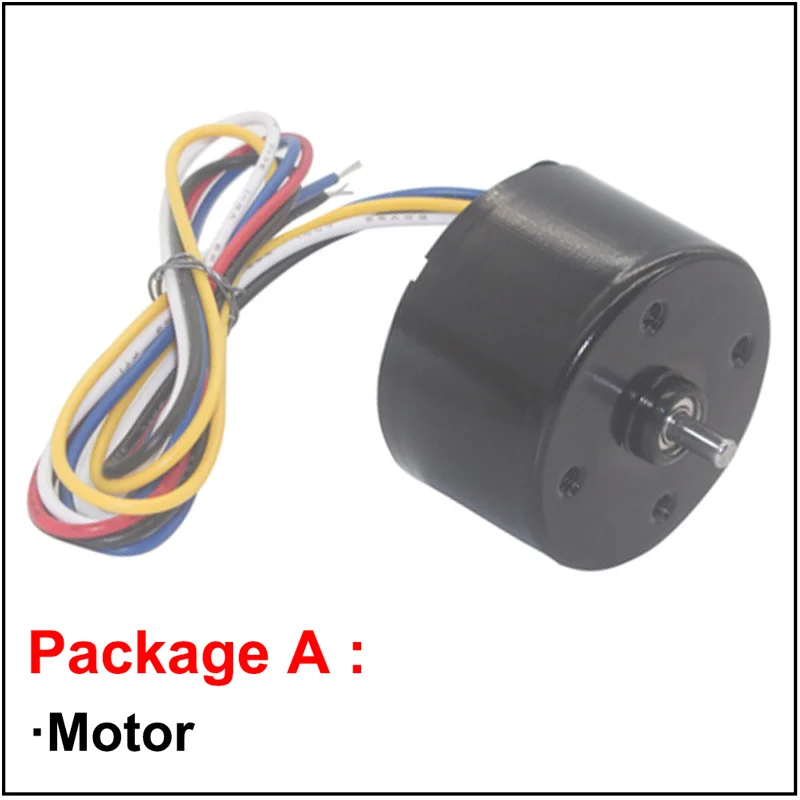

9. The speed of the motor can be adjusted using the speed controller. This motor and speed controller are sold in combination. You can refer to the combination sales introduction below.

10. This motor is suitable for a variety of micro-automation equipment. As long as you confirm that the motor voltage and torque of your choice are suitable for the voltage and load of your project before purchase, there is no limit to the scope of use of this motor.

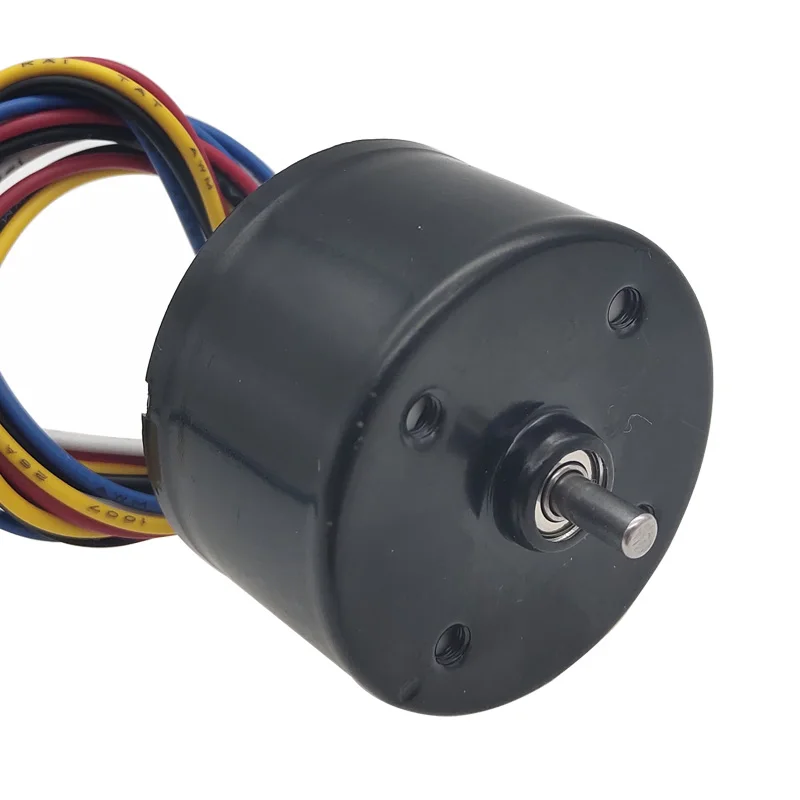

The parameters of the motor

1. DC 12v ; no load speed 3000rpm/min

2. DC 24v ; no load speed 6000rpm/min

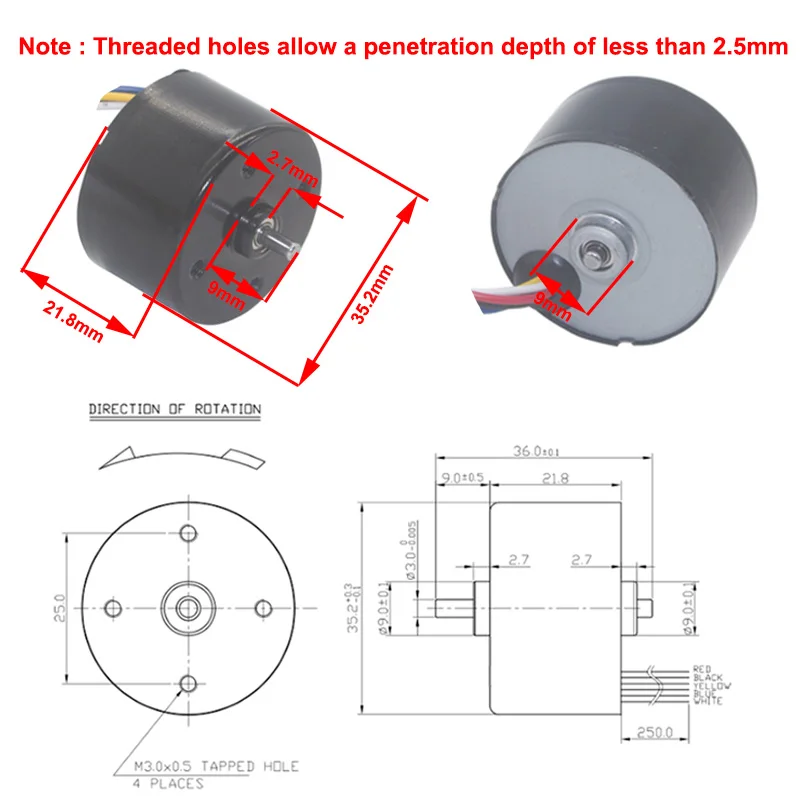

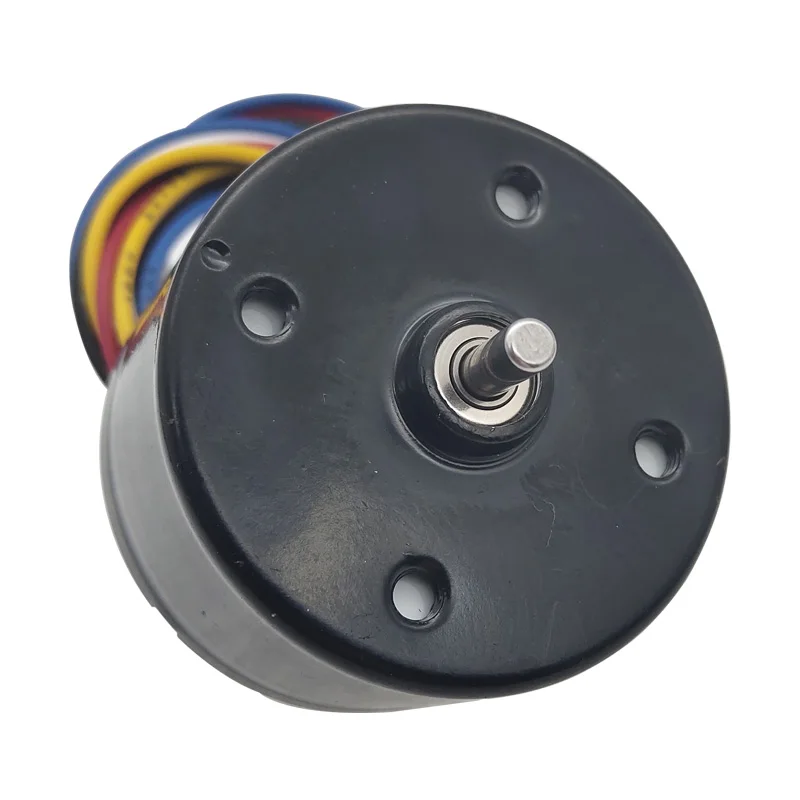

3. The diameter of the motor is 3mm

4. Maximum power is 2.5W

5. The length of the line is 270mm

6. Drive mode: built-in sense Hall drive

7. Firmware performance: brushless stator four-stage magnetic, brushless rotor 6-slot structure

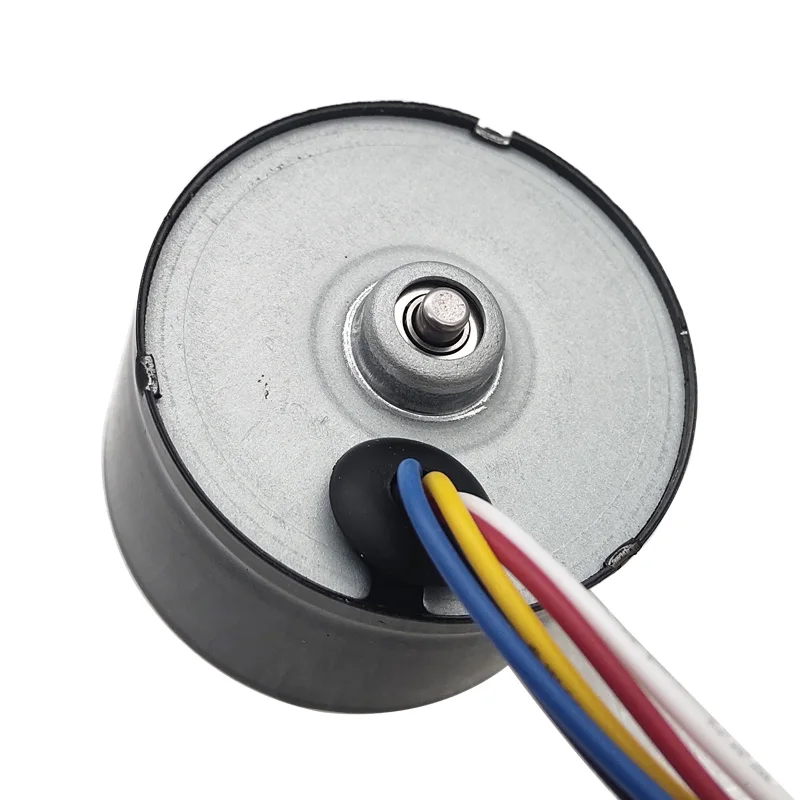

Wiring method introduction

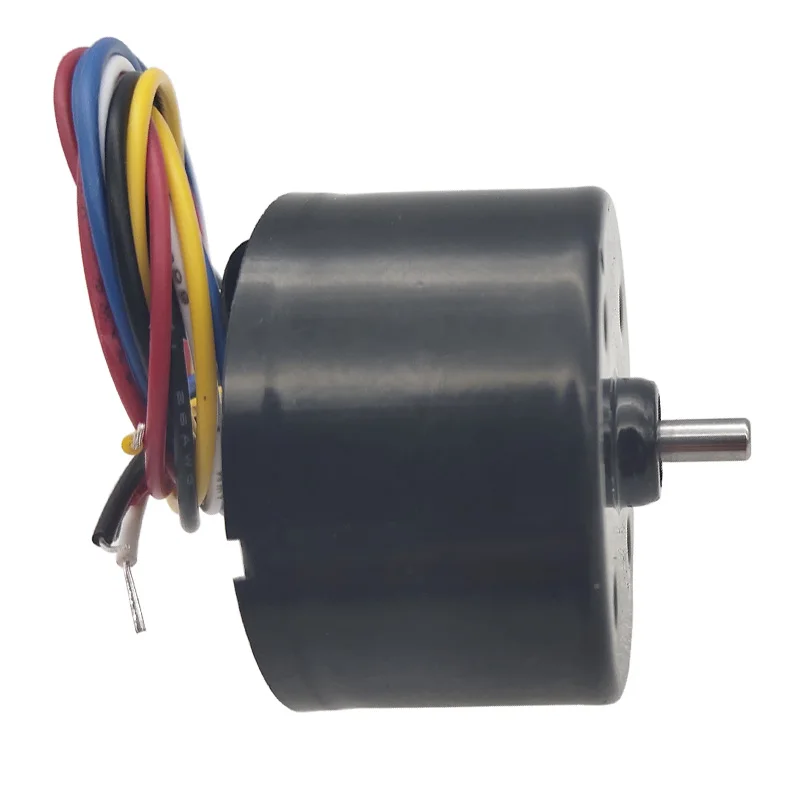

Red line: Connect DC power supply positive + (Prohibit errors)

Black line : Connect DC power supply negative – (Prohibit errors)

Yellow line: FG signal line outputs signal, the motor rotates one turn and output 9 pulse signals

Blue line: PWM pulse width speed control line, can be connected to 0 To 5V

White line: is the line that controls the motor to rotate clockwise or counterclockwise. Connect the white line to the black line and the motor will change the direction of rotation immediately.
(Default overcurrent protection 2.5A; stall protection; with automatic start function)

The positive and negative poles of the power supply are forbidden to be connected incorrectly.

The signal cable is forbidden to be connected to the power supply.

Speed control line power supply and motor power supply are independent; Their power supply is separate

Please use the motor strictly according to the above description, otherwise the motor will burn out, thanks
