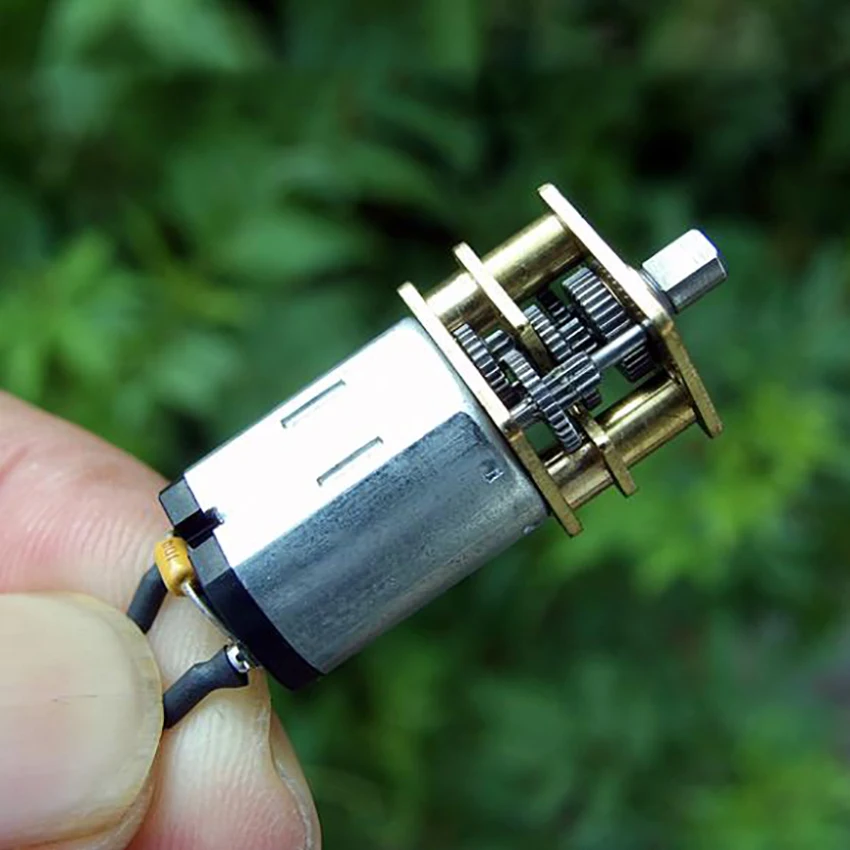

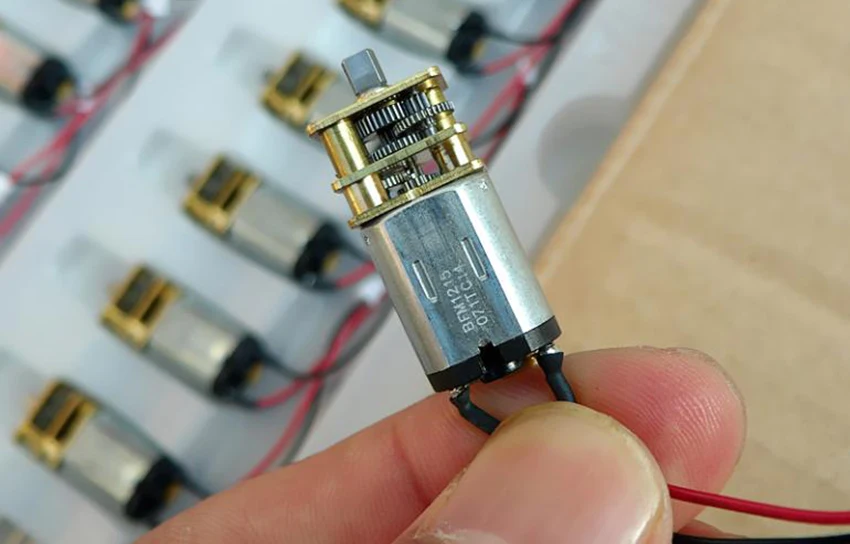

All Metal Gear Precision N20 Geared Motor with Wire DC3V-5V, 10*12 MM Gearbox, Speed Redcution Motor, Reduction Ratio 1:298

All Metal Gear Precision N20 Geared Motor with Wire DC3V-5V, 10*12 MM Gearbox, Speed Redcution Motor, Reduction Ratio 1:298

All Metal Gear Precision N20 Geared Motor with Wire DC3V-5V, 10*12 MM Gearbox, Speed Redcution Motor, Reduction Ratio 1:298

SKU: 4000323762105 Category: Tags: , , ,

Description

The product will be upgraded constantly, the appearance and color may be changed, please don’t mind. And take a consideration before place the order if you have request for color or appearance.
Motor applicable voltage: DC3V-5V (rated voltage is DC3.7V)

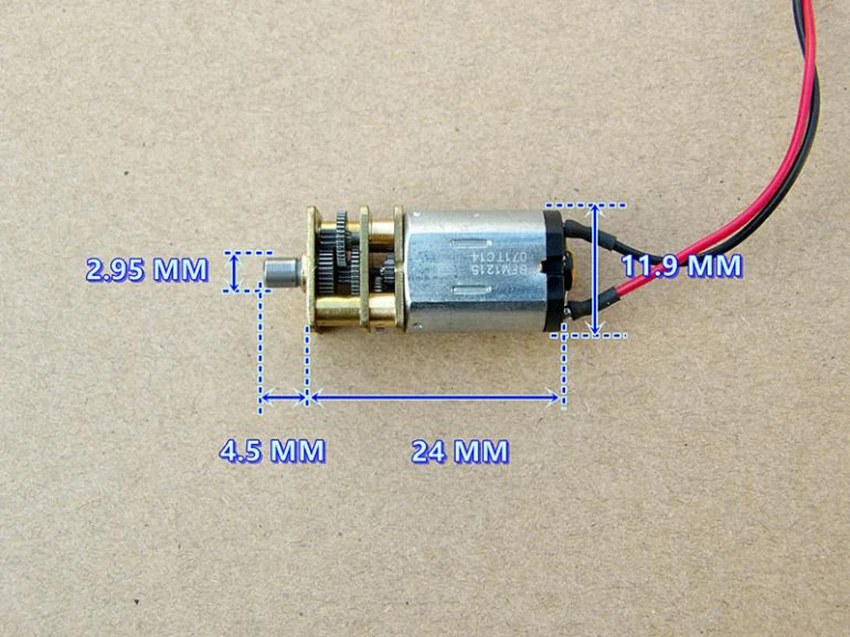

Motor specifications: 10*12*15 MM (N20 motor)
Gearbox specifications: 10*12 MM

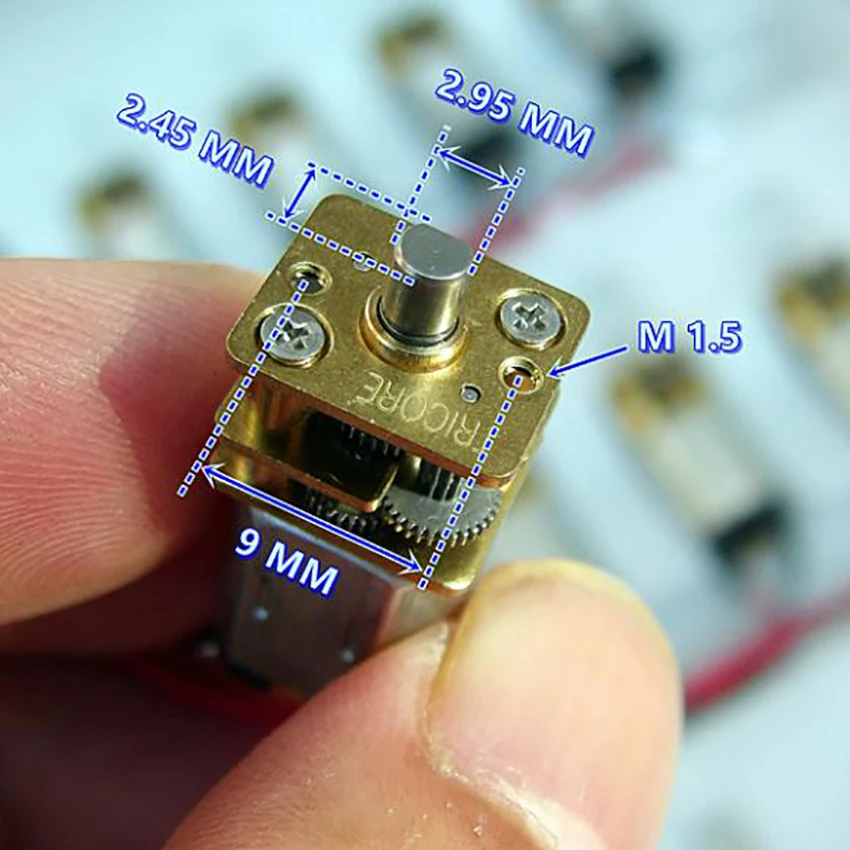

Output shaft diameter: 2.95 MM (with flat position 2.45MM)
Output shaft length: 4.5 MM
Reduction ratio : 1:298
Weight: 10 g
Operating voltage range : DC3.0V-5.0V
Rated voltage : DC 3.7 V
Rated load : 200 g.cm
No-load speed: 44 revolutions (positive negative 10%)
No-load current : 35 MA
Current and speed of other different voltages:
At DC3V, the speed is 35 rpm and the current is 30 MA.
At DC4.2V, the speed is 50 rpm and the current is 36 MA.
At DC5V, the speed is 60 rpm and the current is 40 MA.
Powered test machine, soft sound, full strength, beautiful workmanship.

We are the real original factory, all parameters/specification/size can be custom-made for your requirement. Talk with our sales engineers team now ~
