What is the difference between a brushed motor and a brushless motor?

This is a DC brushless geared motor. Compared with a brushed motor, its outstanding features are as follows:

① The service life is higher, the service life is 10 times that of the brush motor, and the service life can reach 30,000 hours;

② It has the function of over-current, over-voltage and over-temperature protection. When the load of the project exceeds the torque of the motor and the current and temperature of the motor increase, or the input voltage exceeds the voltage of the motor, the motor will automatically power off and stop working. After reducing the load of the project, the motor can be connected to the power supply work again. Which can effectively avoid damage to the motor due to improper use.

③ Built-in Hall driver. With FG signal line output pulse, it can accurately measure speed; (non-professionals should not use this function,thanks)

The following describes the information of the motor

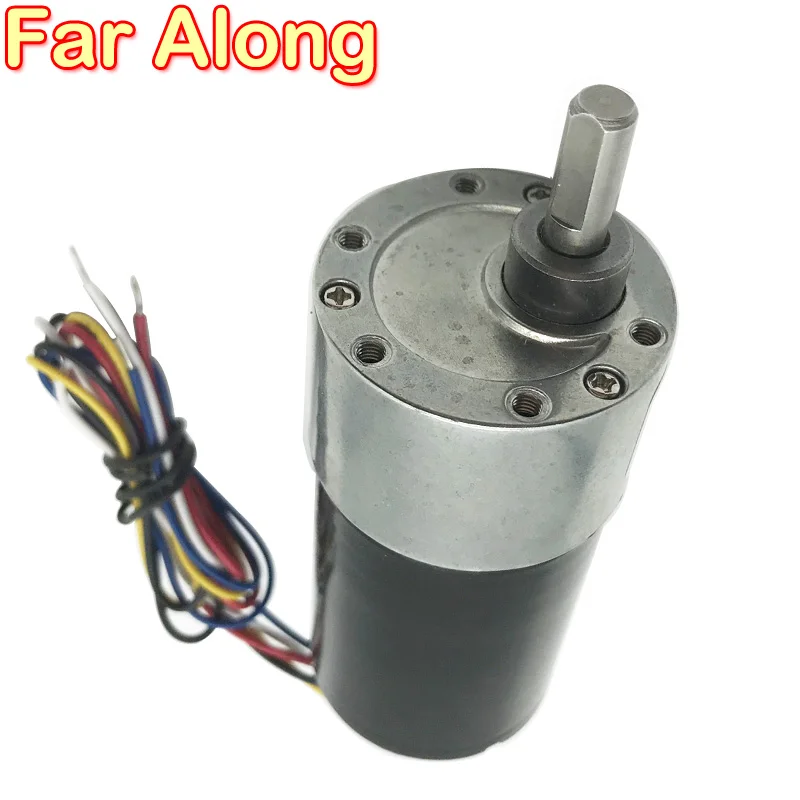

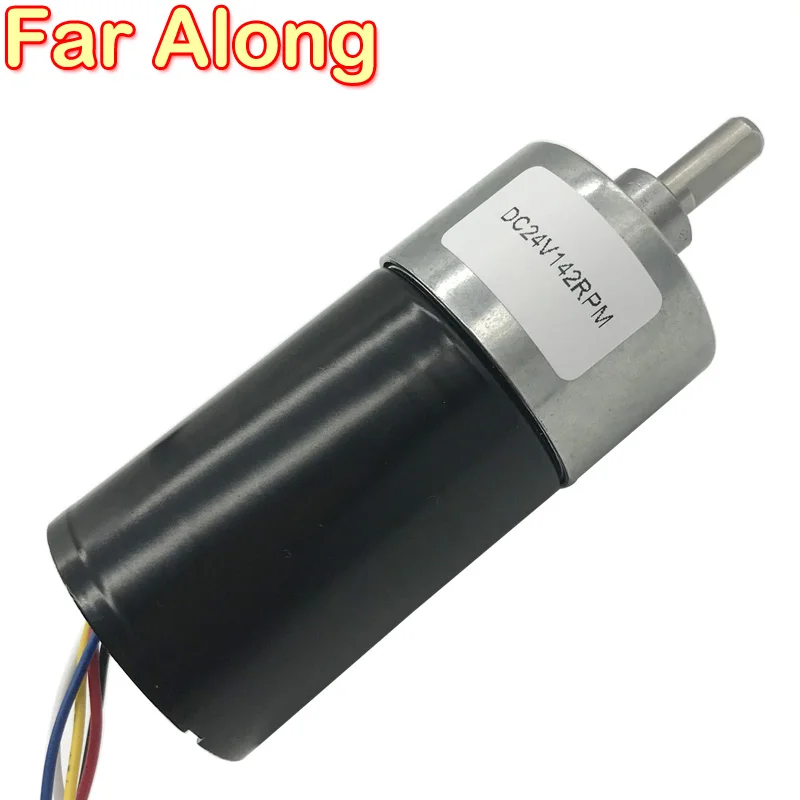

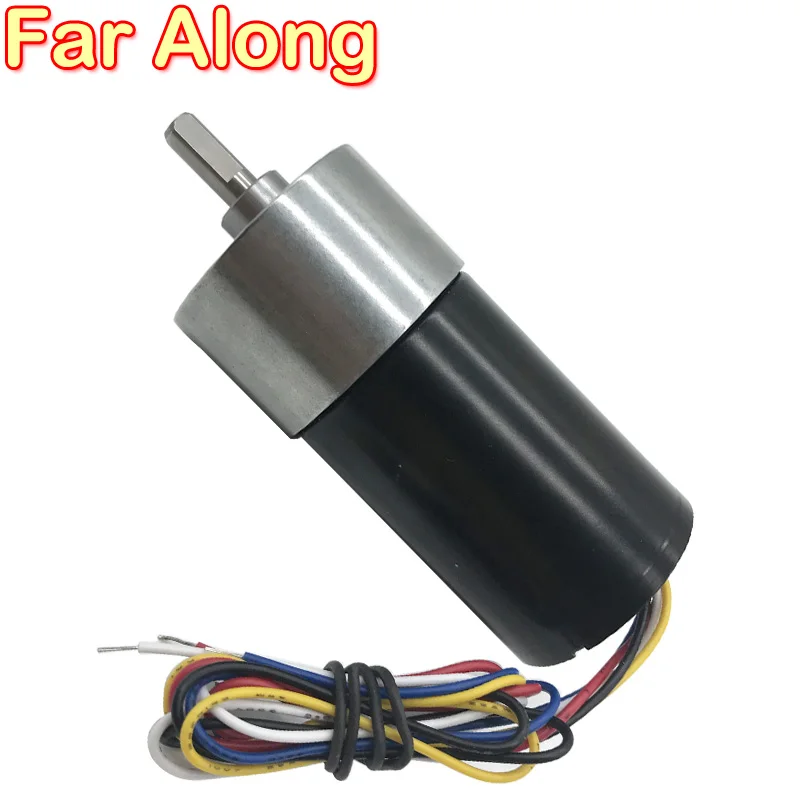

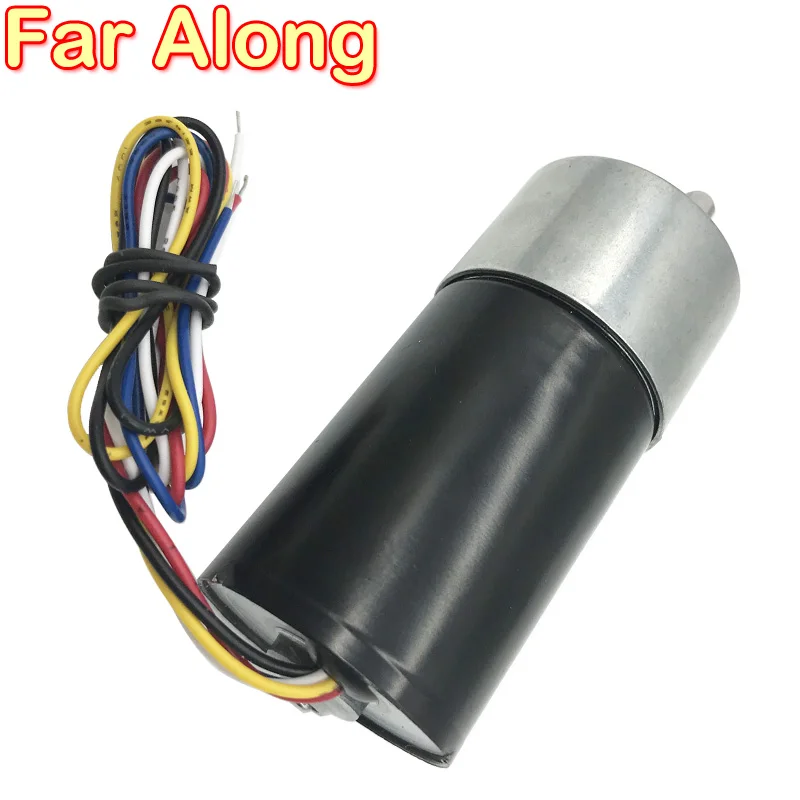

① The name of the motor: Brushless DC Geared Motor

② The voltage you can choose for this motor is DC 12V and DC 24V

③ After you select the voltage of the motor, you can choose one of the following speeds to purchase. The following speeds refer to the no-load speed of the motor, not the load speed;

5RPM means that the motor rotates 5 times per minute without load.

Optional no-load speeds are: 5rpm/8rpm/10rpm/15rpm/16rpm/23rpm/29rpm/36rpm/44rpm/47rpm/61rpm/71rpm/88rpm/133rpm/142rpm/212rpm/266rpm/400rpm/425rpm/634rpm/800rpm/1270rpm

Choose one of the speeds, there will be a corresponding load rated torque, so when you choose the no-load speed of the motor, we recommend that you refer to the load rated torque of the motor according to the load of the project instead of the stall torque of the motor.

The speed of the motor is different, and the torque of the motor is also different. For example, the motor parameter you choose is 12v 5rpm, the torque of the motor is 35KG.CM, If the motor parameter you choose is 12v 634rpm, and the torque of the motor is 1.2KG.CM. So the lower the motor speed you choose, the greater the torque of the motor. Conversely, the higher the speed you choose, the smaller the torque of the motor.

Some people will have a doubt. If the maximum speed of this motor is purchased, such as 1270rpm, if we reduce the speed of the motor from 1590rpm to 5rpm, when the motor is running at 5rpm, can the torque of the motor reach 35KG?

This is impossible. When the speed of the motor is adjusted, the torque of the motor will also decrease as the speed decreases. For example, the speed of the motor you bought is 1270rpm, and the torque of the motor is 2.4KG.CM. When you reduce the speed of the motor, the torque of the motor will be lower than 2.4KG. If the speed of the motor is greatly reduced, the torque of the motor will also be greatly reduced.

If you buy the lowest speed of this motor, such as 5rpm, the torque of the motor is 35KG, if you reduce the speed of the motor from 5rpm to 1rpm, the torque of the motor will also be lower than 35KG.

So you need to consider whether the final torque of the motor can reach the load of your project after the motor is decelerated. If not, you need to consider choosing other lower speeds or other motors.

You can contact us about the principle of torque change with speed, we can help you avoid buying mistakes, thanks!

④ Assuming that the parameters of the motor you buy are 12v 5rpm, the adjustable speed range of the motor is 0rpm to 5rpm, that is, the speed you choose to buy is the adjustable range Maximum speed.

⑤ Direction of rotation of the motor: CW Or CCW, Support Reversed;

The wiring method of the motor reversal will be reflected in the information below.

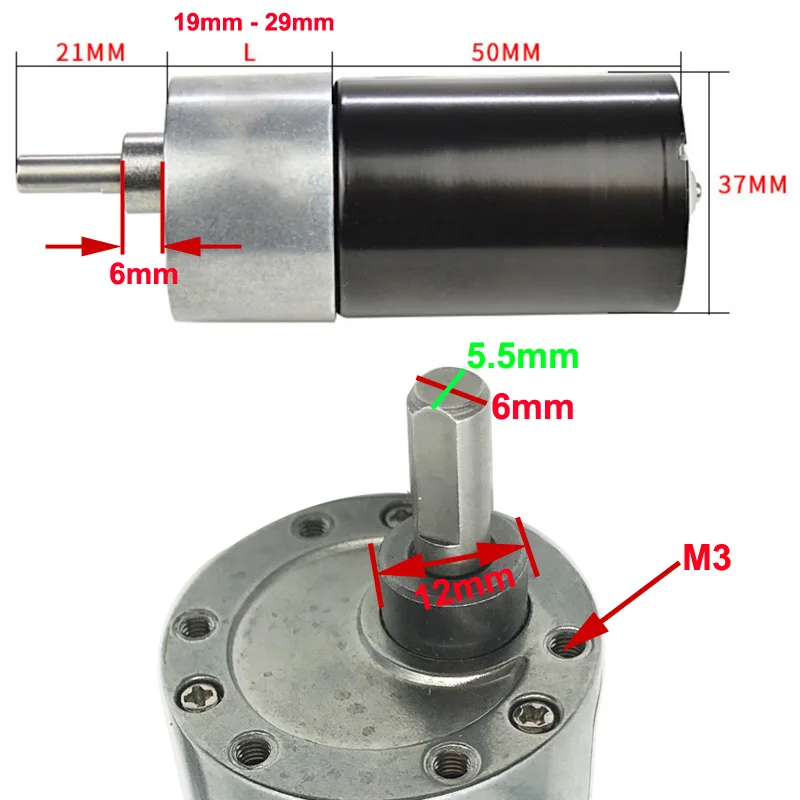

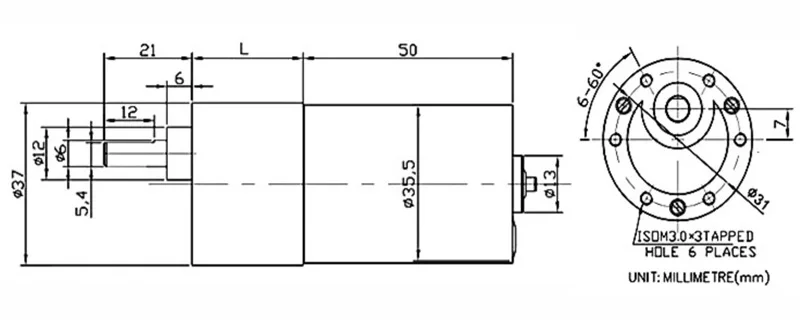

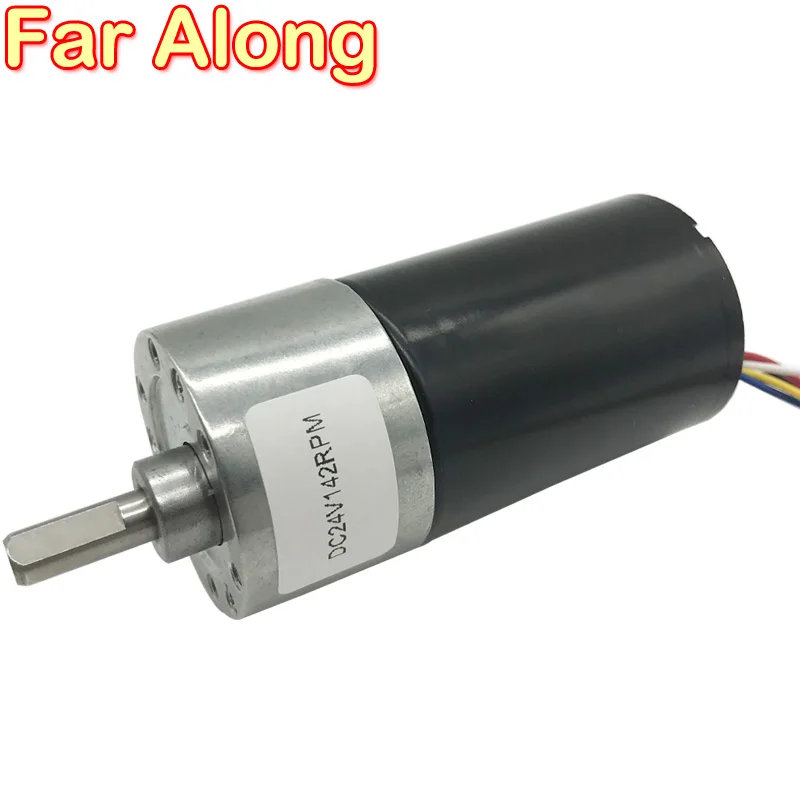

⑥ The shaft shape of the motor: the diameter of the motor shaft is 6mm, please refer to the size chart below for all dimensions of the motor.

⑦ Gear material: Metal gears make the motor last longer

⑧ The motor has standard noise when working. If your project has requirements for the working noise of the motor, please consult us before purchasing. We will give you some suggestions. Thank you.

When the motor is reversed, the working sound of the motor will be greater than the forward rotation, which is normal.

⑨ This motor is suitable for a variety of smart devices, but you need to carefully check whether the size, voltage, speed and torque of the motor are suitable for your device before purchasing.

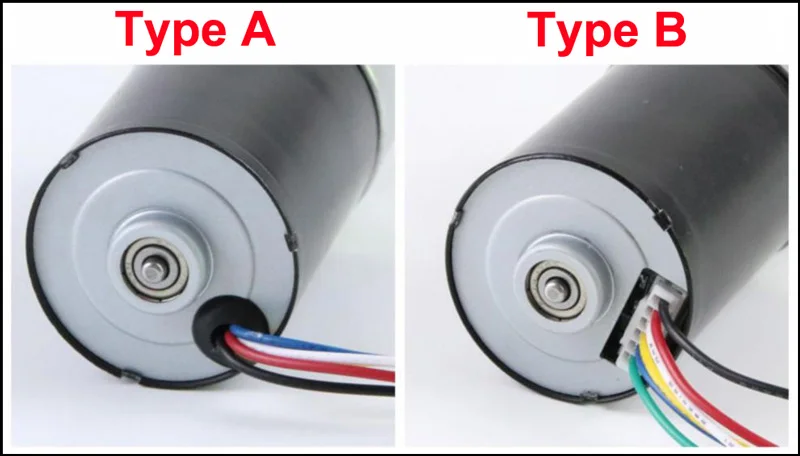

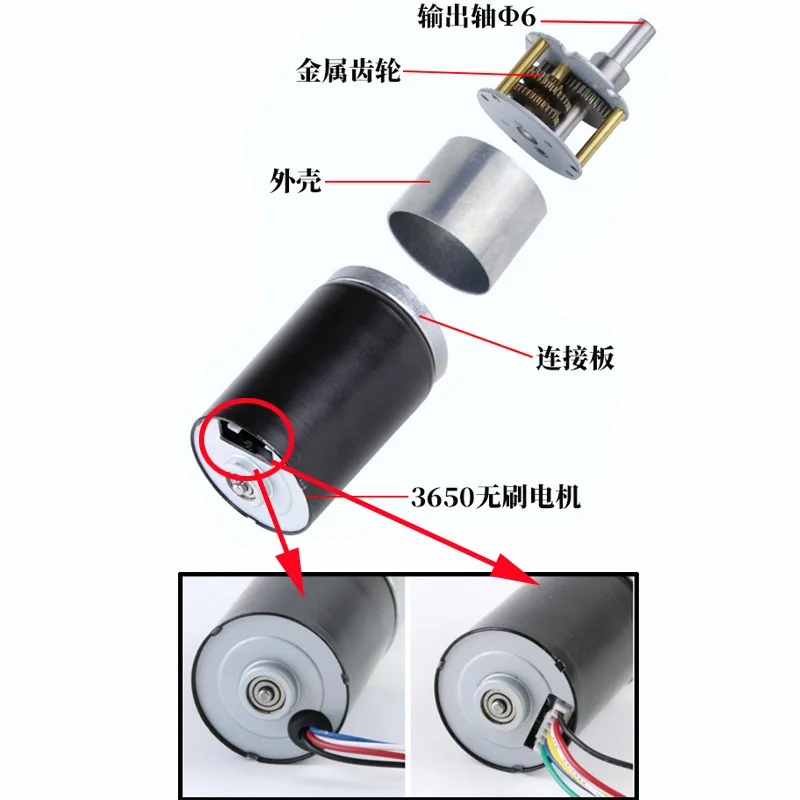

There will be two outlet types at the bottom of this motor

There will be two outlet types at the bottom of this motor, and we will randomly send one of them to you, so you cannot specify which type to send. Sorry, please don’t buy if you mind, thank you for your understand!

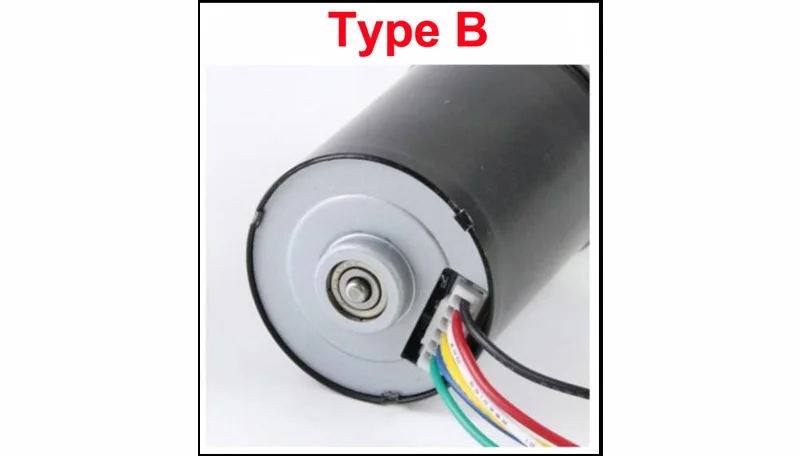

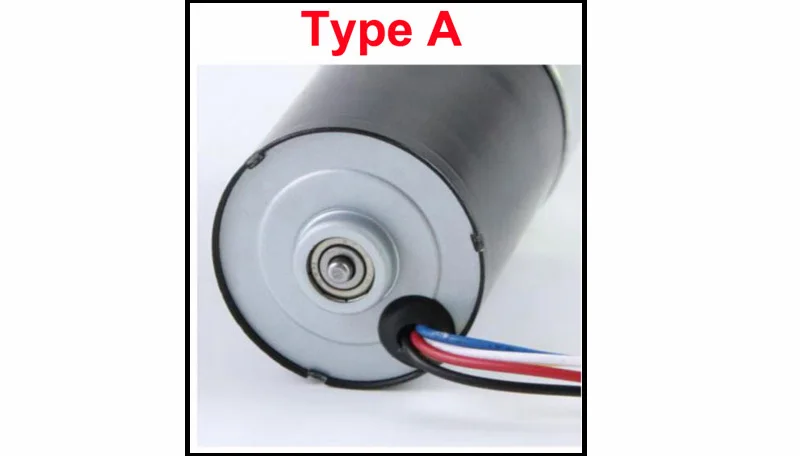

Type A has only five wires, and type B has six wires, which means that type B has a brake function. If you receive a type A motor, the motor will not have a brake function.

Please note that the two types of wiring are different. The different wiring methods of Type A and Type B will be introduced below.

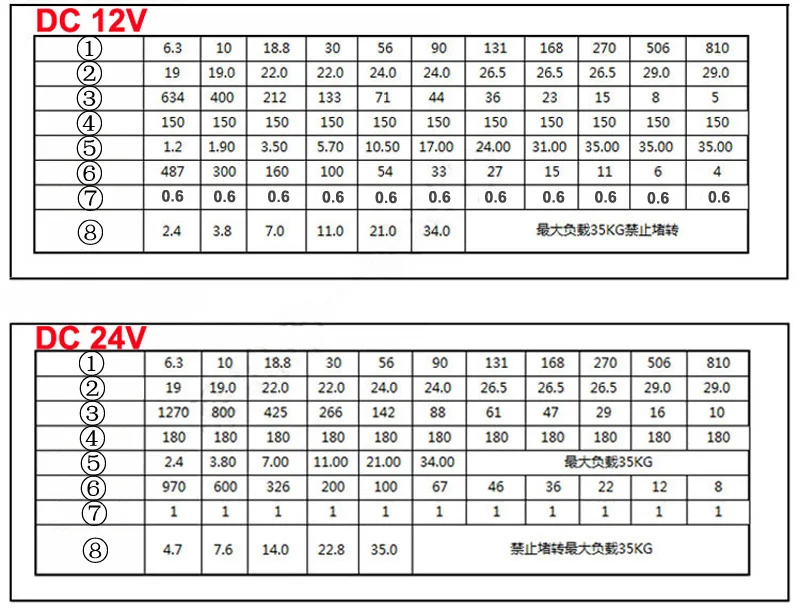

The following is the motor parameter table

Your project load should not exceed load rated torque of the motor, otherwise the life of the motor will be reduced.

The length of the gearbox is abbreviated as "L", and the unit of length is mm. This refers to the length of the gearbox corresponding to the parameter you selected. As we all know, the speed of the motor is different, the structure of the gear inside the gear box is different, so the length of the reduction box is different.
