Description
- Origin: CN(Origin)
- Certification: ROHS
- Continuous Current(A): (starting current 5A)
- Commutation: Brush
- Model Number: MJ-775-DUAL
- Type: Micro Motor
- Protect Feature: /
- Output Power: /
- Construction: Permanent Magnet
- Torque: /
- Usage: Electric Bicycle
- Usage: Home Appliance
- Efficiency: /
GOOD 775 Type (3000-20000 RPM) long thread shaft motor
Some notes: the motor body sometimes has slight scratches
Model: RS-775
Voltage: 12v-24v universal
Selectable voltage / speed (no load /per minute):
12V: 3000 4500 6500 10000
24V: 6000 9000 13000 20000
Shaft length: 50mm
Shaft diameter: 5mm
Voltage: 12-24V DC
Speed: 3000-20000 rpm
No-load current: 1.7A (starting current 5A)
Rated current : 2A
Weight: 0.35KG

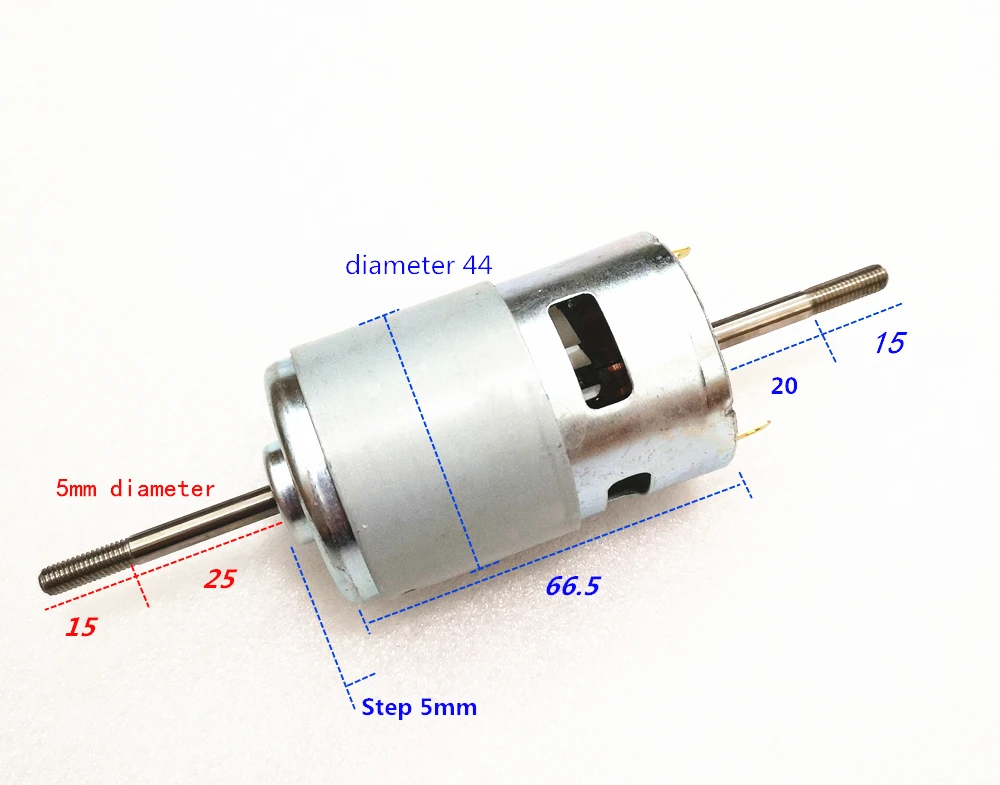

Dimensions: outer diameter 44mm, length 66.5mm
other instructions:
The motor does not rotate for the following reasons:
This motor needs more than 2A current to start. If the current is not enough, the electric machine will wobble and rotate unsteadily. In serious cases, the motor will only wobble but not rotate.
We are the real original factory, all parameters/specification/size can be custom-made for your requirement. Talk with our sales engineers team now ~
Email: chinaok321@gmail.com | Skype: chinaok321 | WhatsApp/WeChat/Mob: 8613713792667
Maxon Faulhaber Motor DC Motor China Manufacturer Factory Coreless Brushless Motor Electric Micro Motor BLDC Flat Brush Motor
Custom Coreless DC Motor Gearbox Brushless Brush Micro Electric Motor 2610 Small Vibrating Motor
DC Drive Rotary Tattoo Machine Motor DC Motor for Tattoo Pen Swiss Flat Motor Slotless Motor China Factory Manufacturer
Custom Range
Performance: customizable in continuous operation range
Ball Bearing: preload
Flange: standard front and real flange / custom flange
Axis: length / diameter / stepped shaft / double outlet shaft / hollow shaft
Application Scenarios:
DIRECT SELLING BY MANUFACTURER SUPPORT PROCESSING CUSTOMIZATION
Our products are widely used: label printer,label stripper,barcode printer, robot Electronic door locks,printers,electronic monitors,display shelves, counters, vending machines and automotive parts Intelligent kitchen and sanitation, household appliances, medical equipment, communication equipment, industrial equipment, instruments and meters,aviation models,many industries such as robot, personal care,security camera,digital electronics, our motor factory can meet different needs of customers customized.
