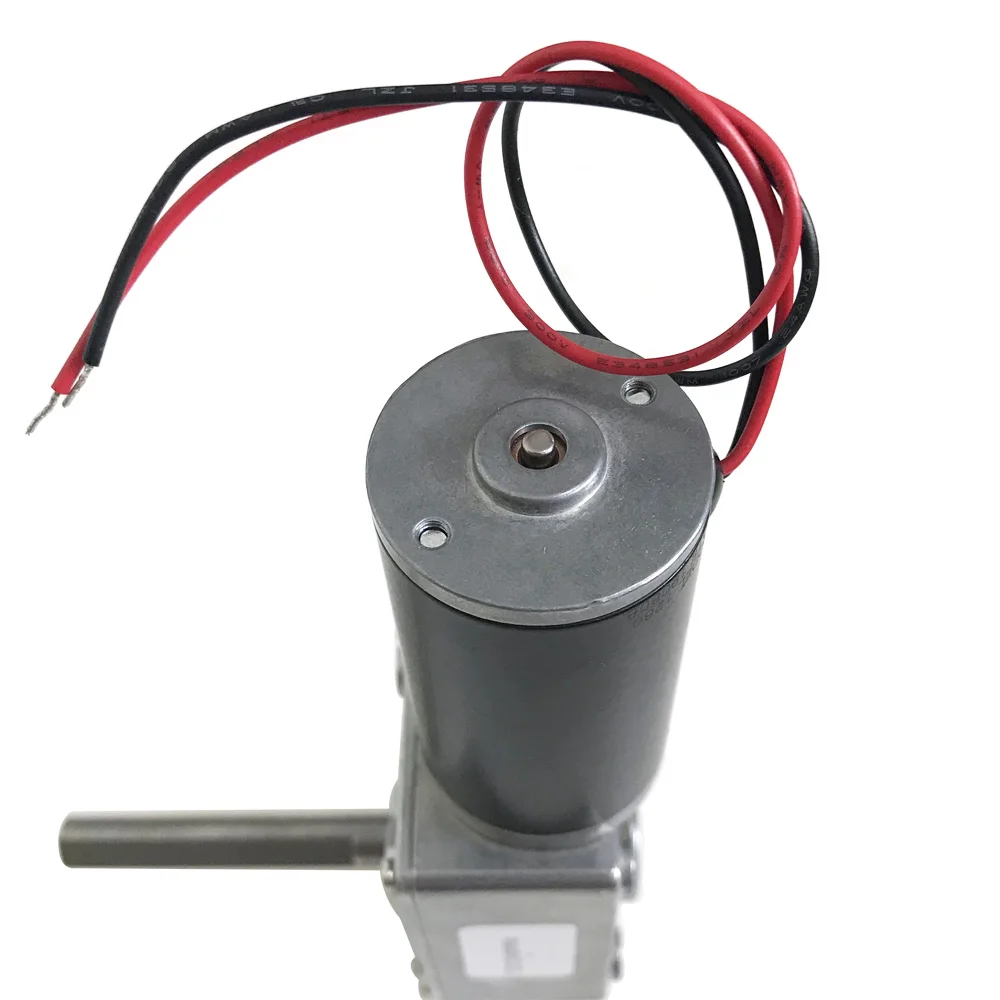

12V 24V Micro DC Worm Gear Motor High Torque 2.7 To 70KG Shaft Length 51MM With Self Locking Speed Control And Reversed Use For Micro Smart Device Robot Or DIY Toys

Introduction of the motor

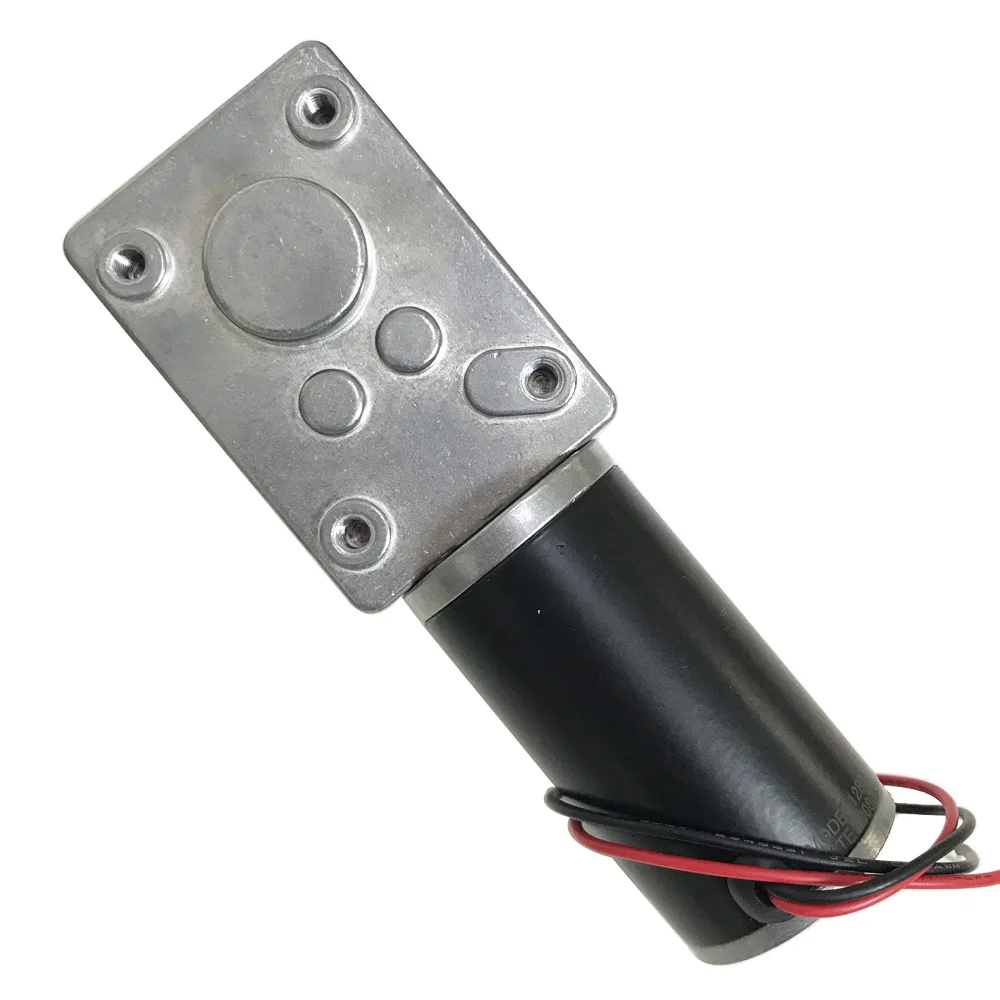

1. Name of the motor: 5840-31ZY With Shaft Length 51MM 12V 24V High Torque Worm Gear Motor Micro DC

2. Rated voltage have DC 12V and DC 24V

3. DC 12V ; You can choose the no load speed have : 12rpm/16rpm/27rpm/40rpm/80rpm/160rpm/260rpm/470rpm

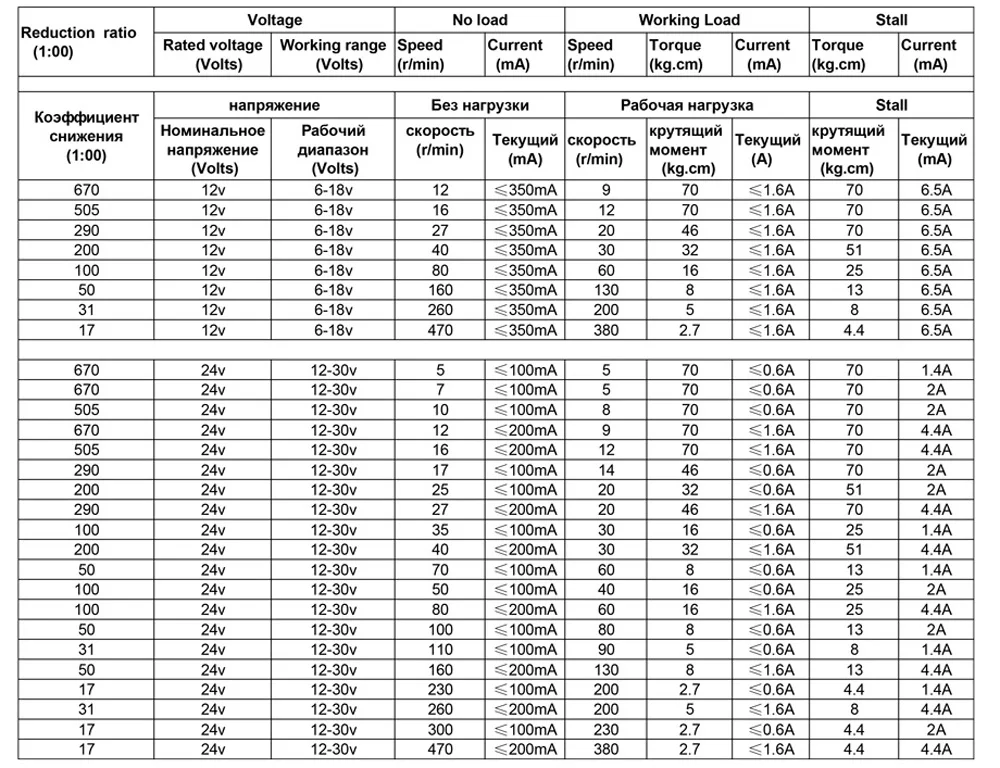

Rated torque between 2.7 To 70 KG.CM; stall torque: between 4.4-70KG, it is recommended that your project load not exceed the rated torque; Select a no load speed in DC 12V, there will be corresponding rated torque and stall torque, please refer to the parameter table below.

4. DC 24V ; You can choose the no load speed have :
5rpm/7rpm/10rpm/12rpm/16rpm/17rpm/25rpm/27rpm/35rpm/40rpm/50rpm/70rpm/80rpm/100rpm/110rpm/160rpm/230rpm/260rpm/300rpm/470rpm

Rated torque between 2.7 To 70 KG.CM; stall torque: between 4.4-70KG, it is recommended that your project load not exceed the rated torque; Select a no load speed in DC 24V, there will be corresponding rated torque and stall torque, please refer to the parameter table below.

5. Direction of rotation of the motor: CW Or CCW, Support Reversed;
Control the clockwise or counterclockwise rotation of the motor by changing the way the positive and negative electrodes are connected

6. The motor has a self-locking function ;
After disconnect the power supply, the shaft can be securely locked, can not easy to move by other force. When your project is not connected to the power, you can make your project safely stay somewhere. It can be used for some special purpose.Such as Anti-theft sliding doors.

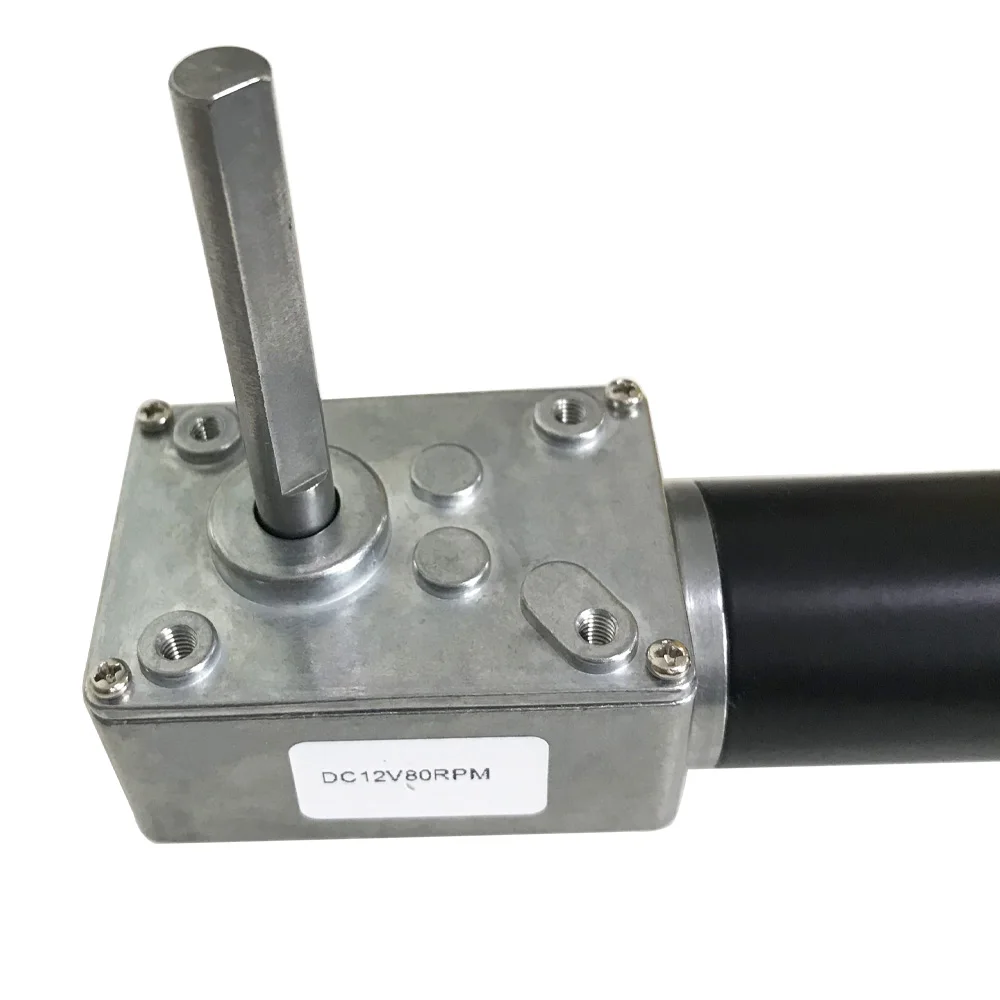

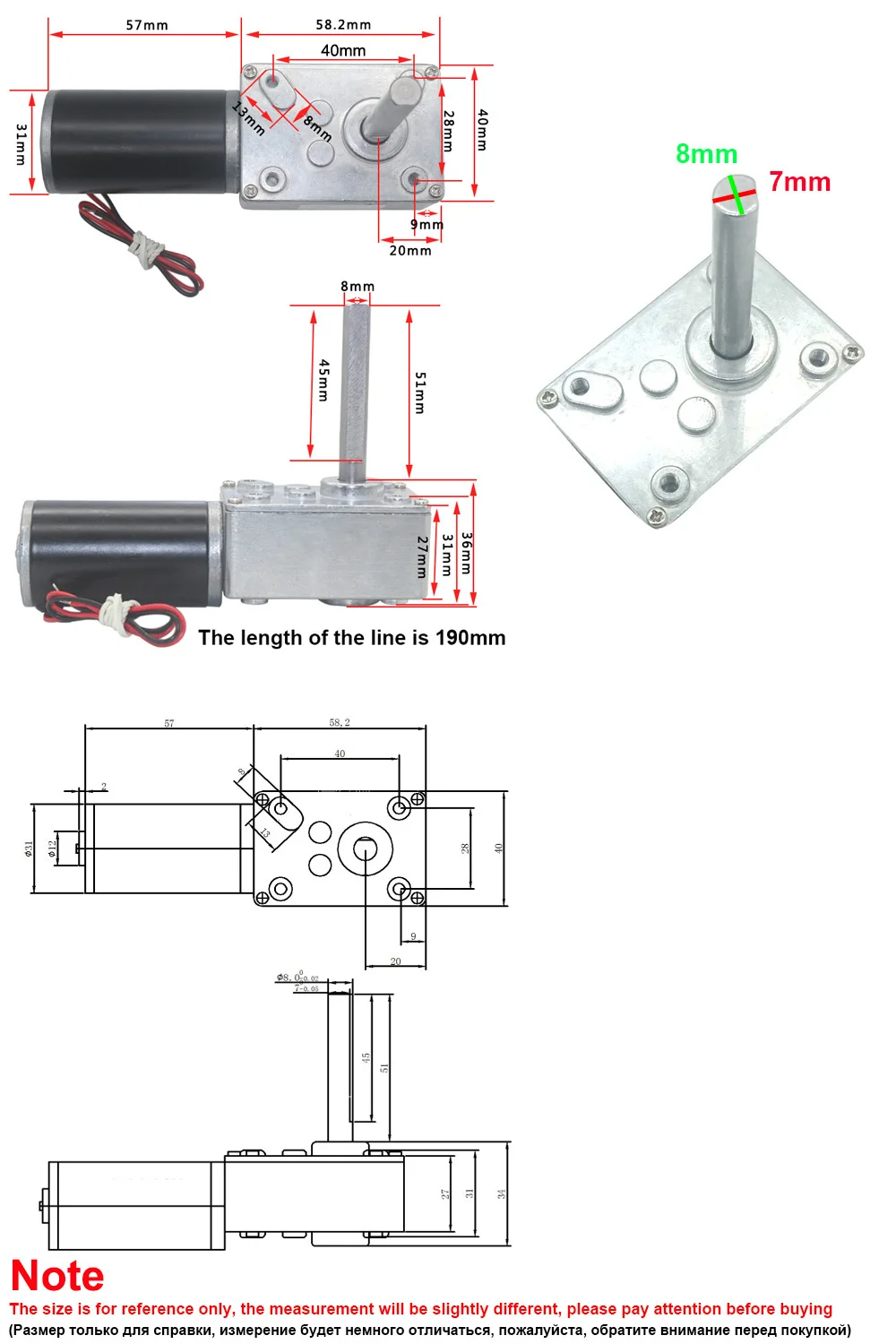

7. The shaft shape of the motor : D type, please refer to the size chart below for all dimensions of the motor.

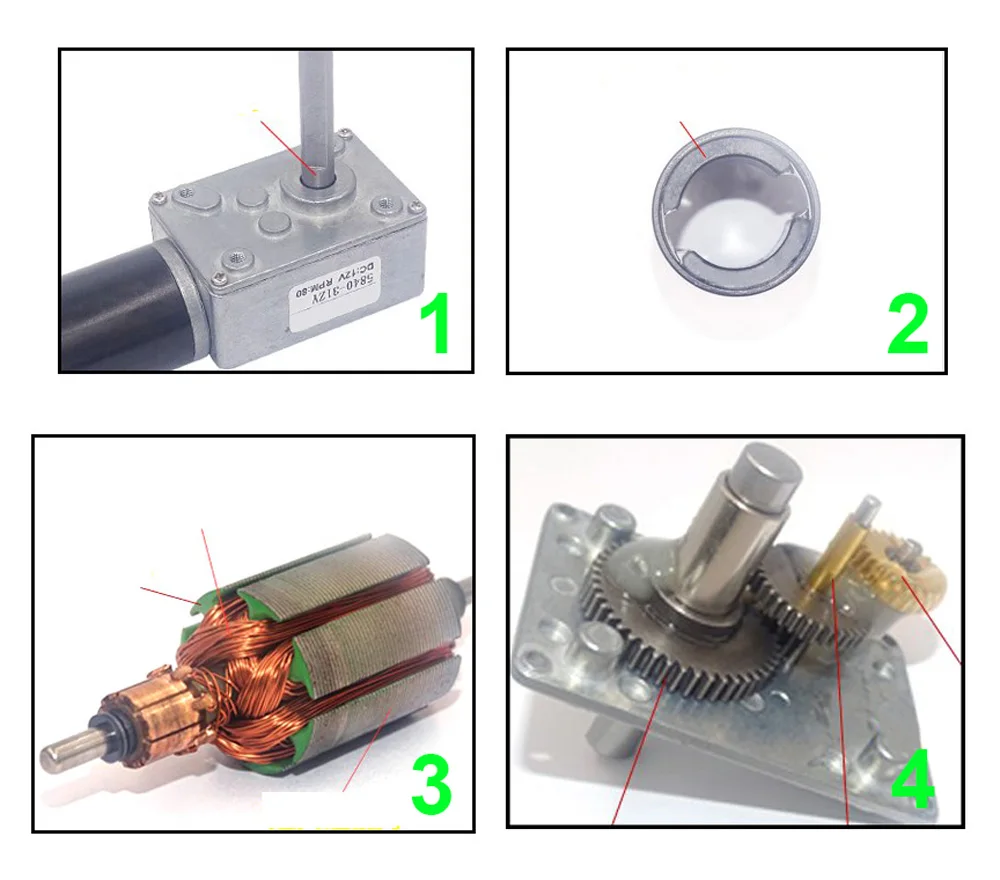

8. Gear material: Metal gears make the motor last longer

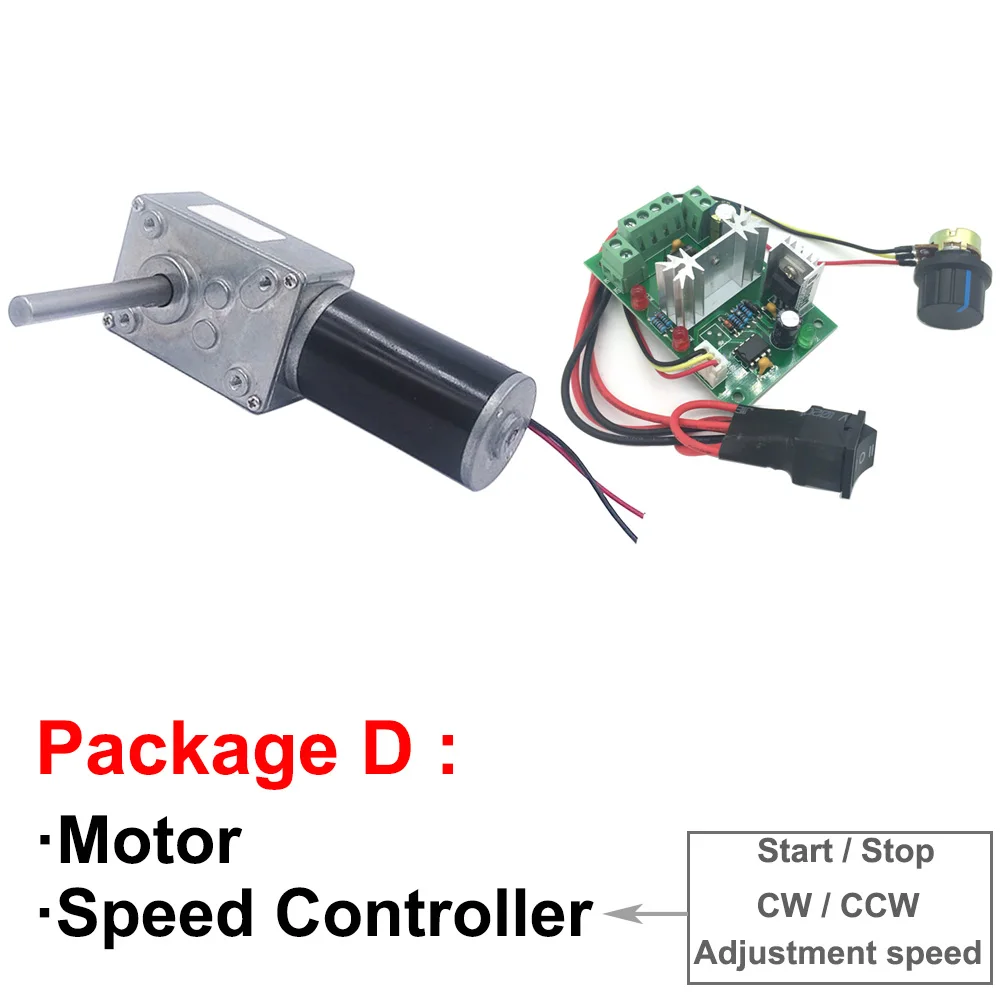

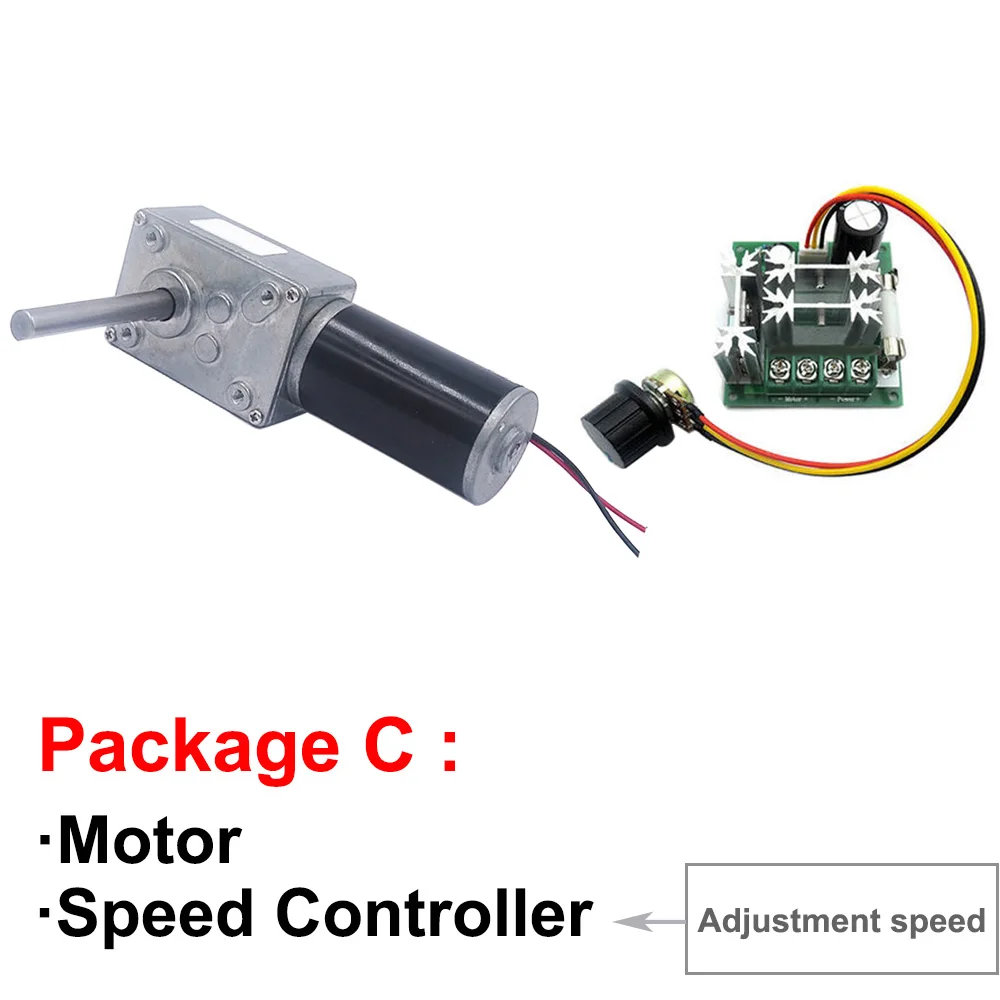

9. The speed of the motor can be adjusted using the speed controller. This motor and speed controller are sold in combination. You can refer to the combination sales introduction below.

10. The motor has standard noise when working. If your project has requirements for the working noise of the motor, please consult us before purchasing. We will give you some suggestions. Thank you.

When the motor is reversed, the working sound of the motor will be greater than the forward rotation, which is normal.

11. Motor DC power connection is safe; the experiment proves that the motor voltage is lower than 36V without any danger.

12. This motor is suitable for a variety of micro-automation equipment. As long as you confirm that the motor voltage and torque of your choice are suitable for the voltage and load of your project before purchase, there is no limit to the scope of use of this motor.
For example, Electric curtains ; Billboard motors ; Household appliances etc.
