Description
- Brand Name: szcmmotor
- Origin: CN(Origin)
- Certification: CE
- Continuous Current(A): 0.2A
- Commutation: Brush
- Model Number: GA12-N20
- Type: Gear Motor
- Protect Feature: Drip-proof
- Output Power: 0.35W
- Construction: Permanent Magnet
- Torque: 1.15kg.cm
- Usage: BoAt
- Usage: car
- Usage: Electric Bicycle
- Usage: Fan
- Usage: Home Appliance
- Efficiency: IE 2
- Warranty: 3months-1year
- Place of Origin: Guangdong, China
- Model Number: JGA12-N20B
- Usage: BOAT, Car, Electric Bicycle, FAN, Home Appliance
- Certification: ce, RoHS
- Type: GEAR MOTOR
- Torque: 1.15KG.CM
- Construction: Permanent Magnet
- Commutation: Brush
- Protect Feature: Totally Enclosed
- Speed(RPM): Requirement
- Continuous Current(A): 0.2A
- Efficiency: IE 2
- Product Name: Precision Mini DC Gear Motor With Encoder
- Application: Automatic Product
- Typical Applications: intelligent bike lock
- Keywords: Mini DC Motor
- Motor type: PMDC Brushed Motor
- Product character: long life low noise
- Factory property: professional manufacturer
- Quality policy: life long warranty
- Warranty period: one year
- OEM service: yes
JGA12-N20B Precision Mini DC Gear Motor With Encoder
|
1.Standard Operating Conditions: |
|
|
1-1 Rated Voltage: |
6VDC constant between motor terminals |
|
1-2 Direction of Rotation: |
CW when viewed from output shaft side |
|
1-3 Operating Temperature and Humidity |
Temperature range of -10℃~+50℃, Humidity range of 30%~80% temperature range of -10℃~+50℃ |
|
1-4 Storage Temperature |
Temperature range of -20℃~+60℃ |
|
2.Measuring Conditions: |
|
|
2-1 Motor Position: |
To be place t horizontally when measuring |
|
2-2 Power Supply: |
Regulated DC power supply |
|
2-3 Environmental Temperature and Humidity: |
Temperature range of 15℃ to 30℃ |
|
Relative humidity 30%and 70% |
|
|
2-4Power Supply: |
Regulated DC power supply |
|
–No load speed: 39rpm to 1500rpm |
|
|
2-5 Application: |
–Robotics, Small Appliance, Fanner, Electric Curtain; |
|
–Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine; Electric Valve, Actuator, medical device |
|
|
2-6 Character: |
–Electric motor,low noise,low current and no spark. |
|
–High quantity ,small body |
|
More than 1000pcs is in factory store about this type of different no-load output speed
Model:JGA12-N20
Working volt range:3-12V
Rated volt: 3V
No-loading rotation speed:750Rpm 250Rpm 150Rpm 75Rpm 50Rpm 35Rpm 25Rpm 19Rpm
Rated volt: 6V
No-loading rotation speed:1500Rpm 500Rpm 300Rpm 150Rpm 100Rpm 71Rpm 50Rpm 39Rpm
Rated volt: 12V
No-loading rotation speed:3000Rpm 1000Rpm 600Rpm 300Rpm 200Rpm 142Rpm 100Rpm 78Rpm;
1.Company Advantage:
A. Our company is a large-scale professional manufacturer deeply trusted by domestic and overseas customers, integrating development, production, wholesales and service.
B. To ensure high-quality and best service ,kingly built up professional teams engaged in research,product engineering and sales.

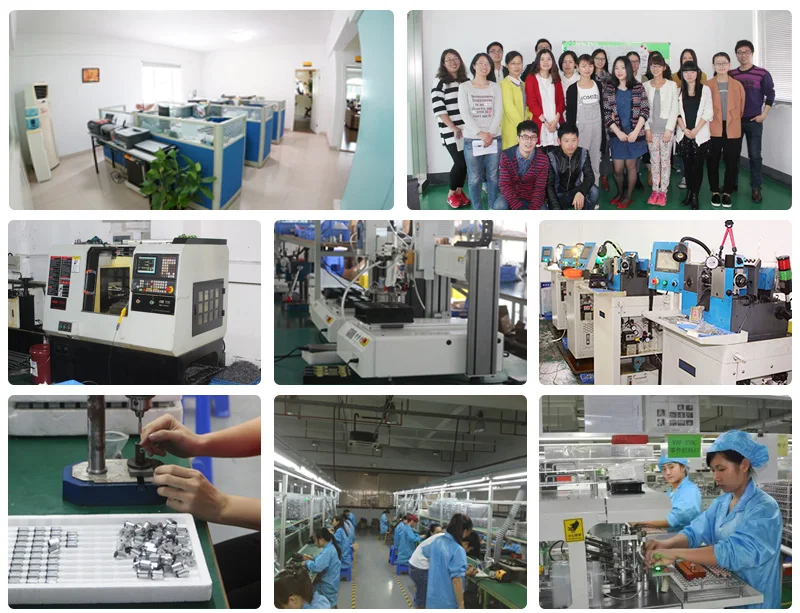

C. We have 10 years experience in the design of the research and development, With strong technology developing ability and manufacturing capability, advanced equipment
2. Product Advantage:
A. Variety of products,quality guaranteed, products are widely used

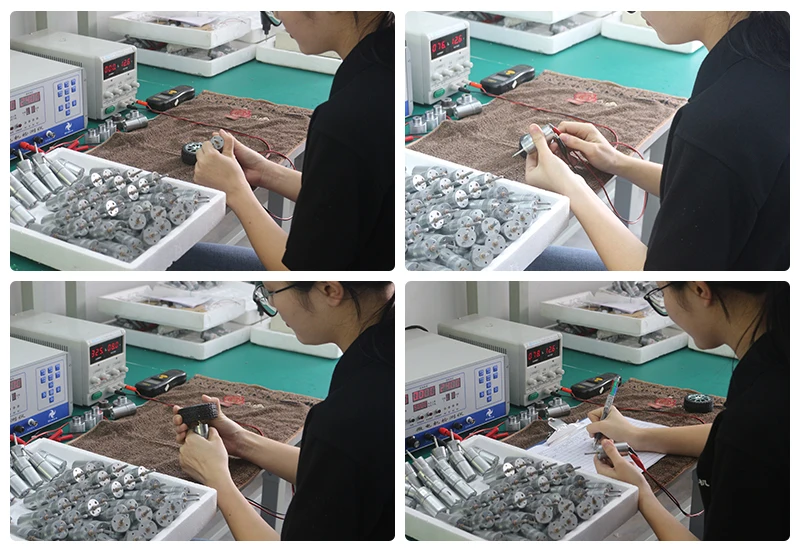

B. Advanced product testing equipment
C. Product flexibility, customize according to the requirements of the clients any special
develop all kinds of molds, Independent research and development since the open mold products
D. Products through a variety of certification(CE,RoHs,ISO,CCC,UL….)
E. Some products have patent certificate
3. Main product advantage
A . Specifications can be tailoer-made according to customer's requirements.
B. Can provide free samples
C. Product quality is guaranteed, a short period of delivery
We are the real original factory, all parameters/specification/size can be custom-made for your requirement. Talk with our sales engineers team now ~
Email: chinaok321@gmail.com | Skype: chinaok321 | WhatsApp/WeChat/Mob: 8613713792667
Maxon Faulhaber Motor DC Motor China Manufacturer Factory Coreless Brushless Motor Electric Micro Motor BLDC Flat Brush Motor
Custom Coreless DC Motor Gearbox Brushless Brush Micro Electric Motor 2610 Small Vibrating Motor
DC Drive Rotary Tattoo Machine Motor DC Motor for Tattoo Pen Swiss Flat Motor Slotless Motor China Factory Manufacturer
Custom Range
Performance: customizable in continuous operation range
Ball Bearing: preload
Flange: standard front and real flange / custom flange
Axis: length / diameter / stepped shaft / double outlet shaft / hollow shaft
Application Scenarios:
DIRECT SELLING BY MANUFACTURER SUPPORT PROCESSING CUSTOMIZATION
Our products are widely used: label printer,label stripper,barcode printer, robot Electronic door locks,printers,electronic monitors,display shelves, counters, vending machines and automotive parts Intelligent kitchen and sanitation, household appliances, medical equipment, communication equipment, industrial equipment, instruments and meters,aviation models,many industries such as robot, personal care,security camera,digital electronics, our motor factory can meet different needs of customers customized.
