Description
The starting current is above 10A, it is recommended to use a DC power supply such as a switching power supply or a battery.
The 795 double ball bearing motor has a high speed of 11000-12000 rpm, high torque, low noise, long service life, and comes with a cooling fan, which is a good choice for power tools and equipment.
Torque: 6.5KG/cm
Operating voltage: DC12V-24V
Rated no-load current: 1.1A
795 (round shaft, double output shaft, special D shaft) no-load speed: 11000-12000 rpm at 12V
795 (D axis 24V) no-load speed: 12V6000 rpm, 24V12000 rpm
Step height: 4.5mm Step diameter: 17.5mm
Motor diameter: 42mm Motor length (without shaft): 70.5mm
Shaft length: 16mm (double shafts are round shafts before and after, length 16mm)
Shaft diameter: 5mm
Tail step height: about 4.5mm
Tail shaft length: about 3mm
Mounting hole pitch: about 29mm
Mounting hole diameter: M4 screw
Suitable for making electric model toys, bench drills, electric grinders, small lathes, equipment, etc.

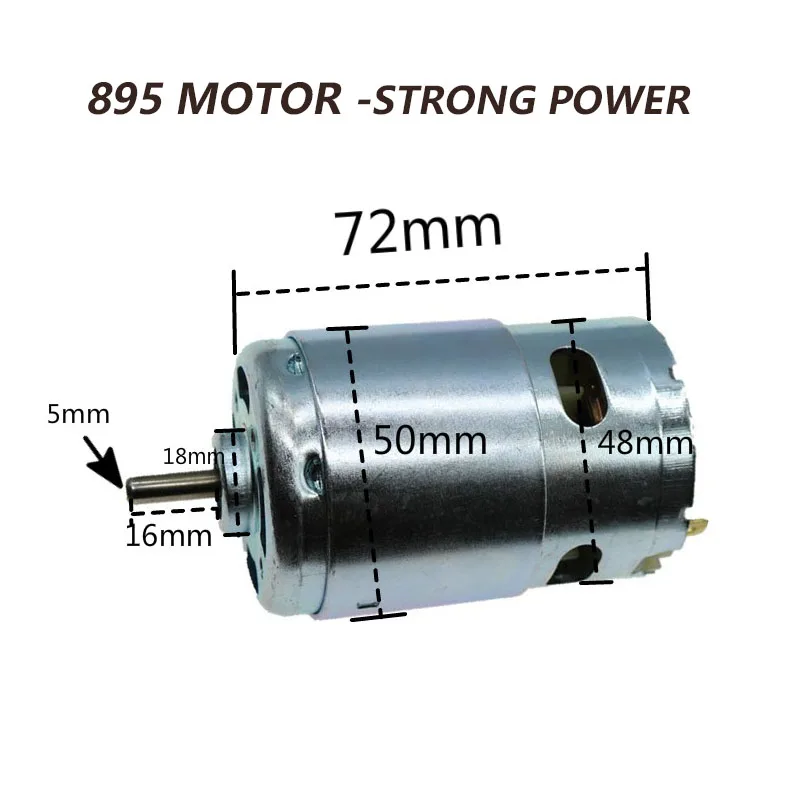

895 motor
The motor is a DC motor and cannot be directly connected to 220V household electricity. The starting voltage of the motor is 12-24V DC and the starting current is more than 10A. It is recommended to use a power supply such as a switching power supply or a battery.
895 motor is suitable for: micro cutting machine, belt machine, lathe, milling machine, bench drill, hand drill, polishing machine, bead machine, lawn mower, wire saw, band saw, electric grinder, engraving machine, scooter and so on.

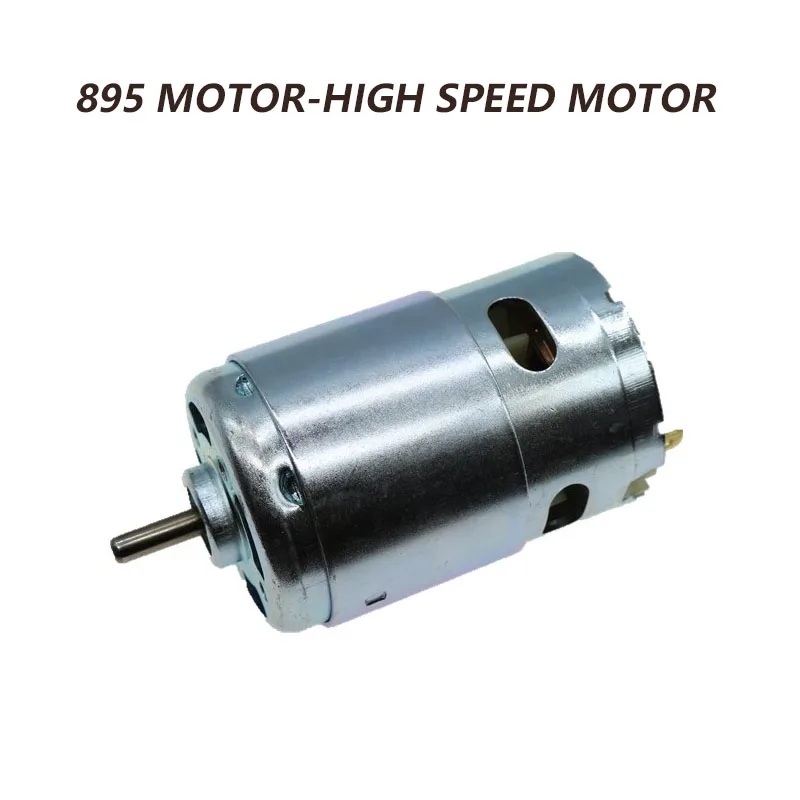

895 high-speed version: 6000 rpm torque at 12V is about 4.2 kg, 1200 rpm torque at 24V is about 8 kg
895 low-speed version: 300 rpm torque of about 5.2 kg at 12V, 600 rpm torque of about 10 kg at 24V
Voltage: DC12V-24V can be used
No-load current: about 1.1A at 12V and 1.5A at 24V
Steering: can be reversed
Step height: 5mm
Step diameter: 18mm
Diameter: 48mm, plus magnetic ring 50MM
Shaft diameter: 5mm, shaft length: 16mm
Shaft length of motor tail: 6mm
Mounting hole small hole spacing: about 29mm, use M4 screws
Installation hole large hole spacing: about 32mm, use M5 screws
Because the 895 motor has large power and thick coils, it can be used as a generator. The faster the speed, the higher the voltage and current.
