Description
Single axis Ball Bearing:
Motor parameters:
Motor step height: 4.5mm
Motor step diameter: 17.5mm
Shaft length: 16mm (shaft length above step level)
Shaft diameter: 5mm round shaft
Motor diameter: 42mm
Motor length: 66.5mm
Step height of motor tail: about 11mm
Length of the shaft at the end of the motor: about 5mm
Mounting hole pitch: about 29mm
Mounting hole diameter: M4 screw
Rated voltage: 24V
Rated voltage: between 12V and 30V
Starting current: 4- (1A 2A is not moving), the working current is 300ma at 12v and 400ma at 24v Recommend the use of 24v, just fierce enough.
Speed: 12V3800 rpm, 24V7600 rpm

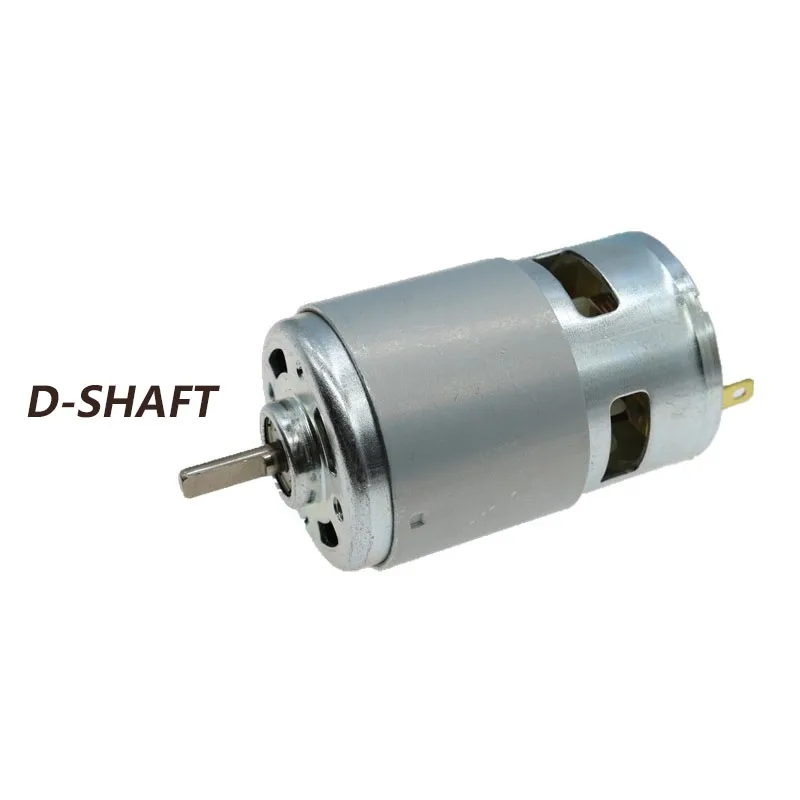

D-Shaft:
Motor parameters of D-shaft 775 motor:
Rated voltage: 12V-24V, power is about 100W
Current: DC power supply above 5A is recommended
Speed: 12V 11000-12000 rpm, 24V 22000-24000 rpm
Motor step height: 4.5mm Motor step diameter: 17.5mm
Front and rear shaft length: 16mm
Shaft diameter: 5mm (cutting edge D-shaped length 13mm)
Motor diameter: 42mm
Motor length: 66.5mm
Mounting hole pitch: about 29mm
Aperture of electrical mounting hole: M4 screw

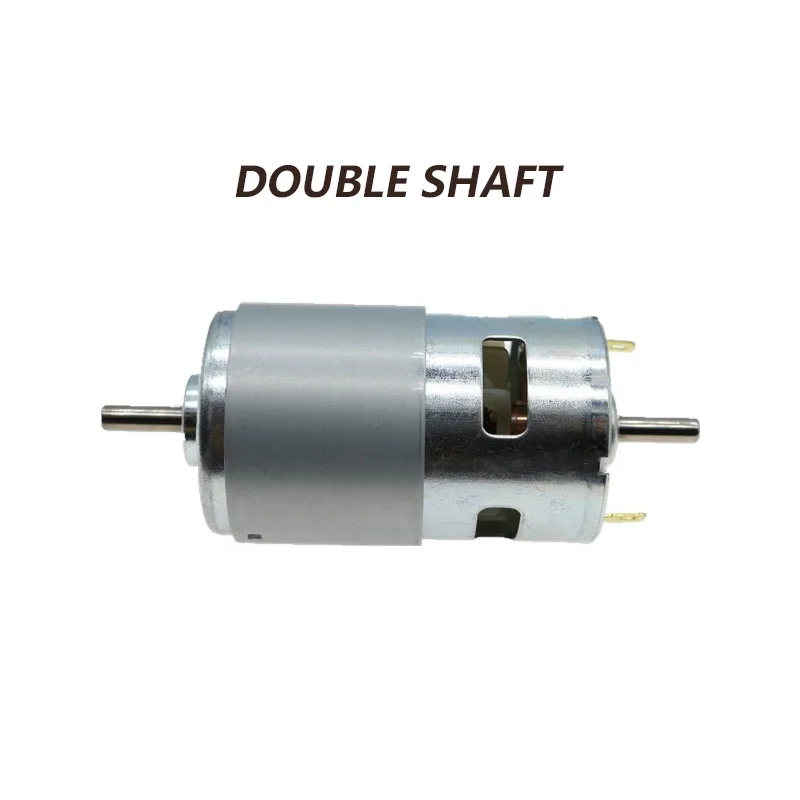

Double Shaft
Motor parameters of double output shaft 775:
Rated voltage: 12V-30V,
The power is about 100W
Current: DC power supply above 5A is recommended
Speed: 12V 6500 rpm, 24V 13000 rpm
Motor step height: 4.5mm
Motor step diameter: 17.5mm
Front and rear shaft length: 16mm
Shaft diameter: 5mm
Motor diameter: 42mm
Motor length: 66.5mm
Mounting hole pitch: about 29mm
Mounting hole diameter: M4 screw
We are the real original factory, all parameters/specification/size can be custom-made for your requirement. Talk with our sales engineers team now ~Â
Email: chinaok321@gmail.com | Skype: chinaok321 | WhatsApp/WeChat/Mob: 8613713792667
Maxon Faulhaber Motor DC Motor China Manufacturer Factory Coreless Brushless Motor Electric Micro Motor BLDC Flat Brush Motor
Custom Coreless DC Motor Gearbox Brushless Brush Micro Electric Motor 2610 Small Vibrating Motor
DC Drive Rotary Tattoo Machine Motor DC Motor for Tattoo Pen Swiss Flat Motor Slotless Motor China Factory Manufacturer
Custom Range
Performance: customizable in continuous operation range
Ball Bearing: preload
Flange: standard front and real flange / custom flange
Axis: length / diameter / stepped shaft / double outlet shaft / hollow shaft
Application Scenarios:
DIRECT SELLING BY MANUFACTURER SUPPORT PROCESSING CUSTOMIZATION
Our products are widely used: label printer,label stripper,barcode printer, robot Electronic door locks,printers,electronic monitors,display shelves, counters, vending machines and automotive parts Intelligent kitchen and sanitation, household appliances, medical equipment, communication equipment, industrial equipment, instruments and meters,aviation models,many industries such as robot, personal care,security camera,digital electronics, our motor factory can meet different needs of customers customized.
