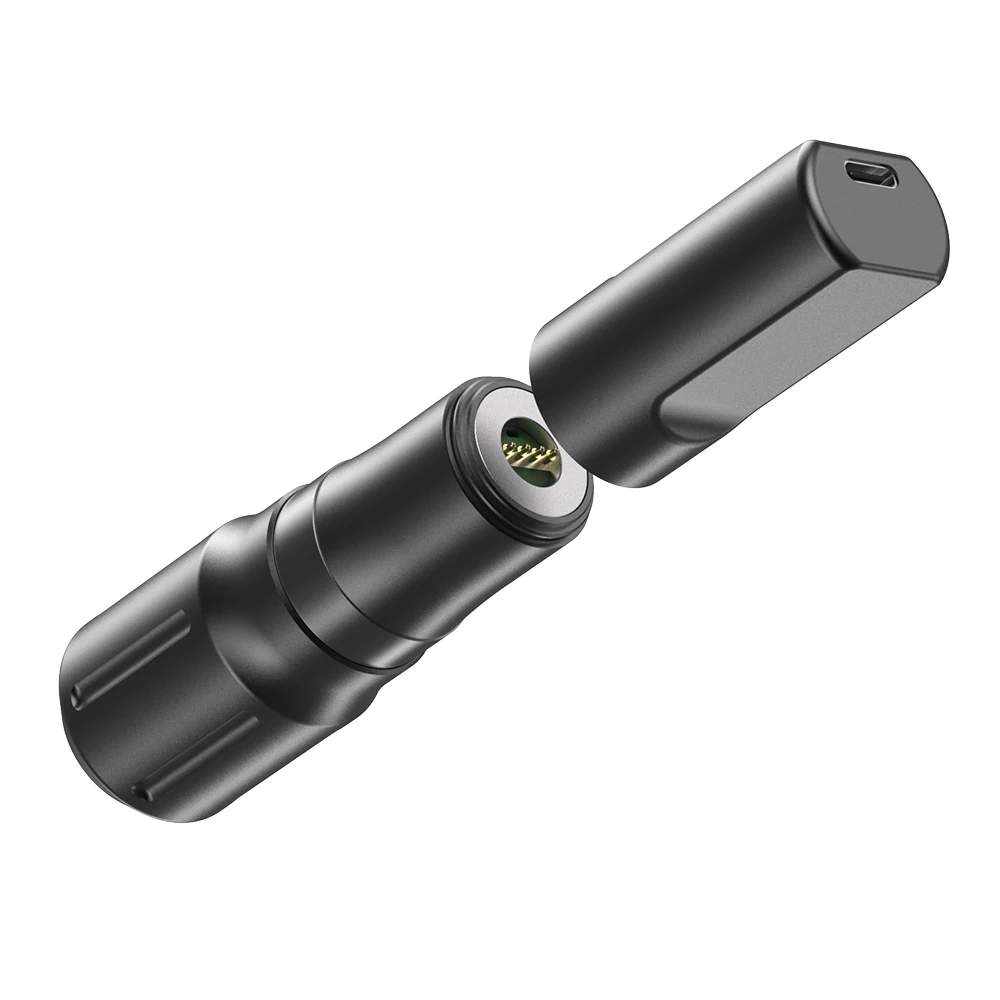

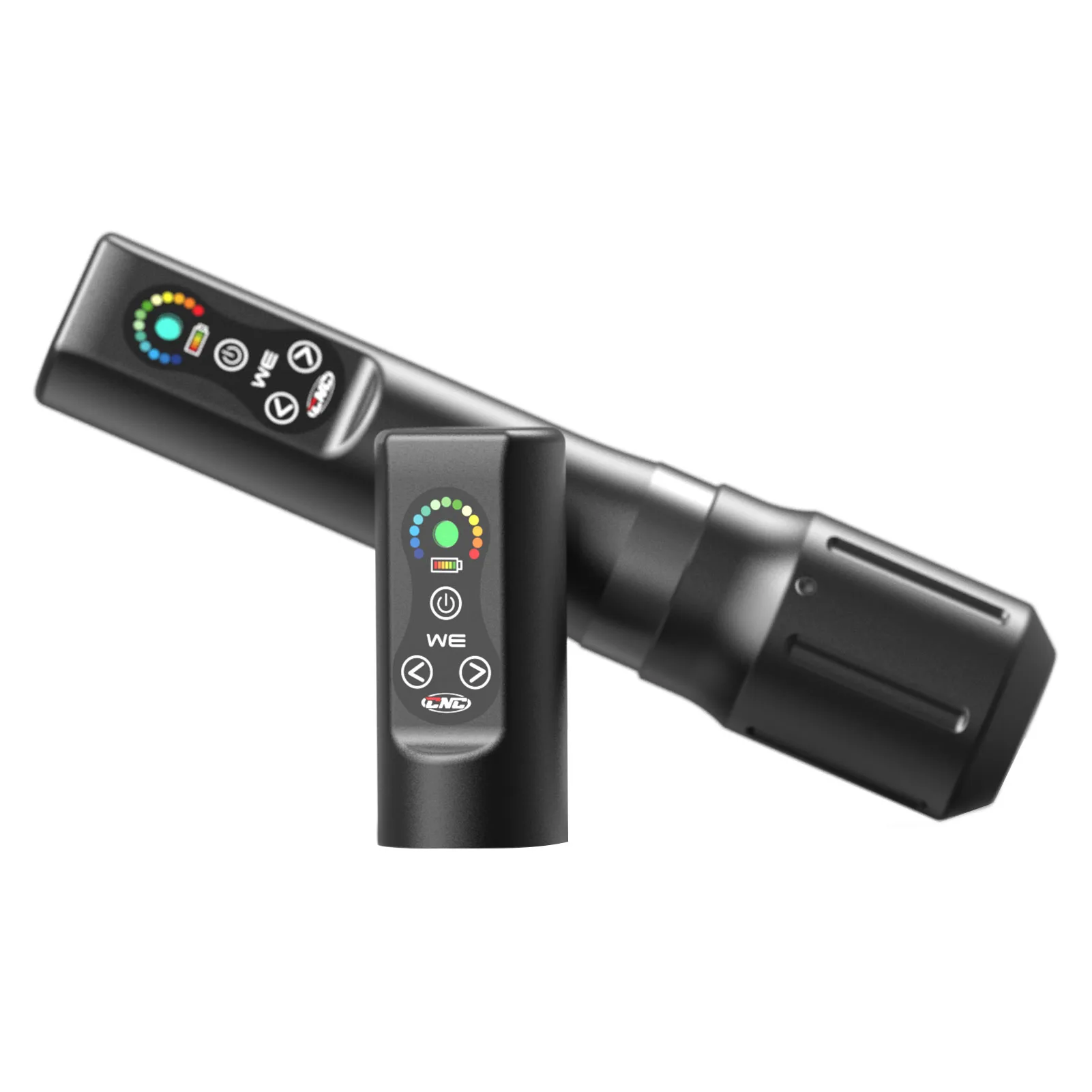

1. The product is connected by magnetic contact, you can freely choose to equip LCD digital display with screen power supply or direct plug-in working mode. The magnetic contact method breaks through the limitations of the original socket contact and avoids the influence of frequent socket use. Tightness and connection problems; while the product is in use, you can remove the power supply and plug-in section, and perform high-temperature disinfection and wiping maintenance on the drive and handle section where the battery is located. The handle head is easy to replace, the needle head is fixed, and the power display area can be passed through The magnet is manually adjusted to match the direction of the needle, which is convenient for the operation of voltage adjustment and switch pause during tattoo.

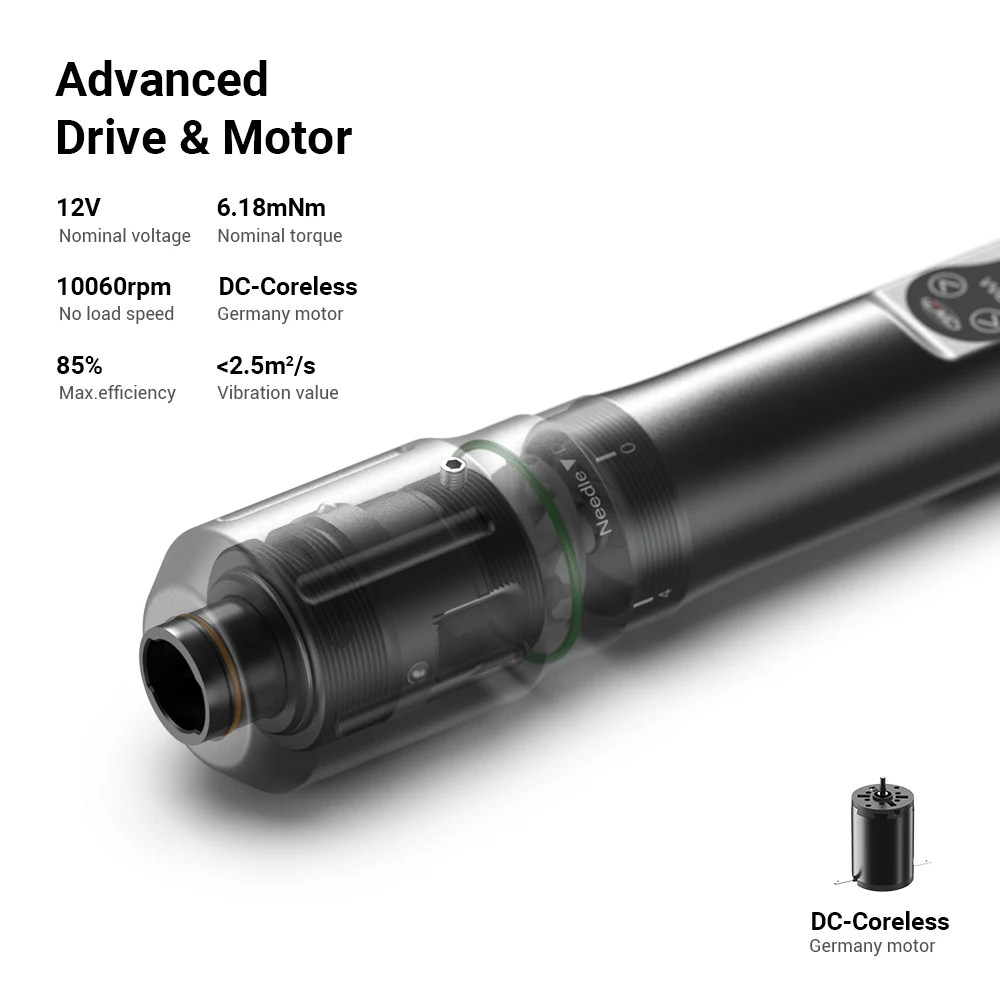

2. When the product is directly inserted, the length is short, the golden ratio is weighted, and the pen is comfortable to hold. It is equipped with two different styles of interchangeable handles and can be selected independently. It is easy to use for a long time, and it is equipped with a high-speed, strong and stable coreless motor. The high-speed bearings imported from France and the high-performance drive conversion mode ensure the stability of the tattoo needle, not easy to swing up and down, and enhance the tattoo effect; by collecting the tattoo experience of major professional tattoo artists. The product needle adjustment is stable, and the product accessories are purchased from international high-standard and high-wear materials, which guarantees the service life of the product;

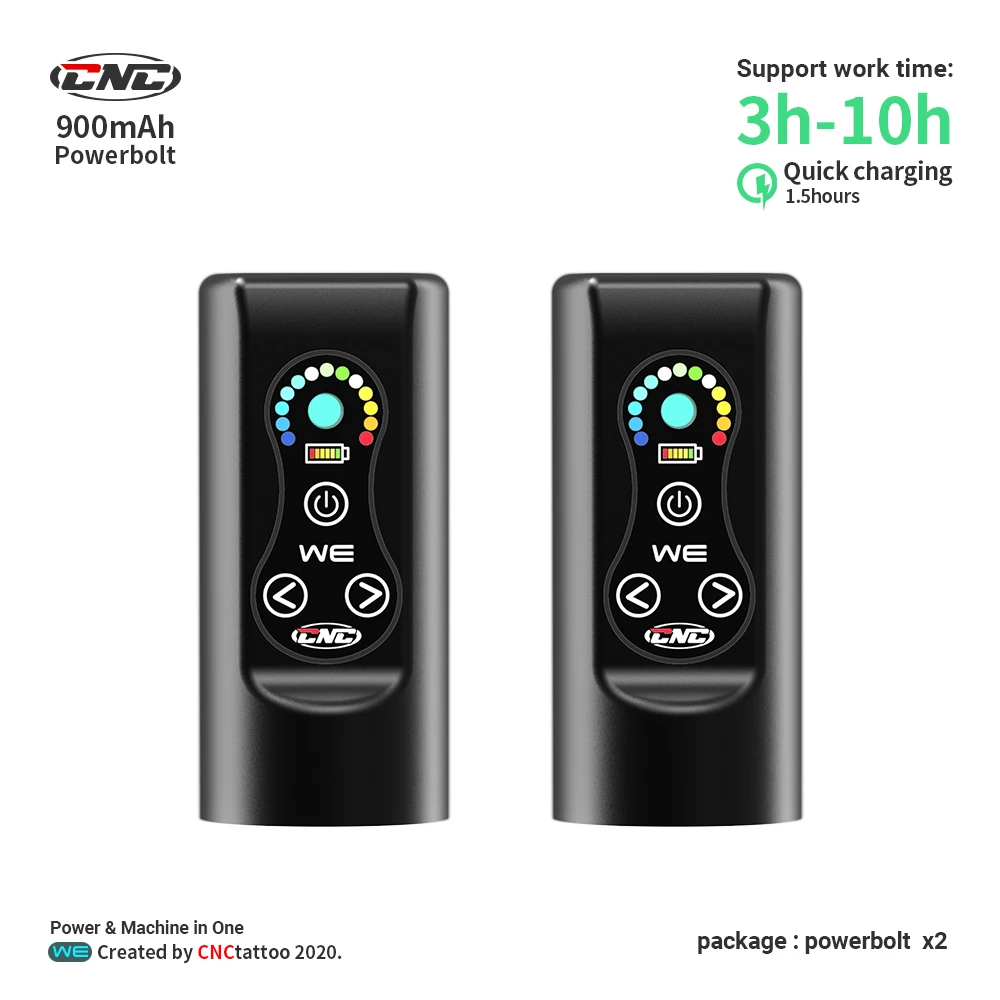

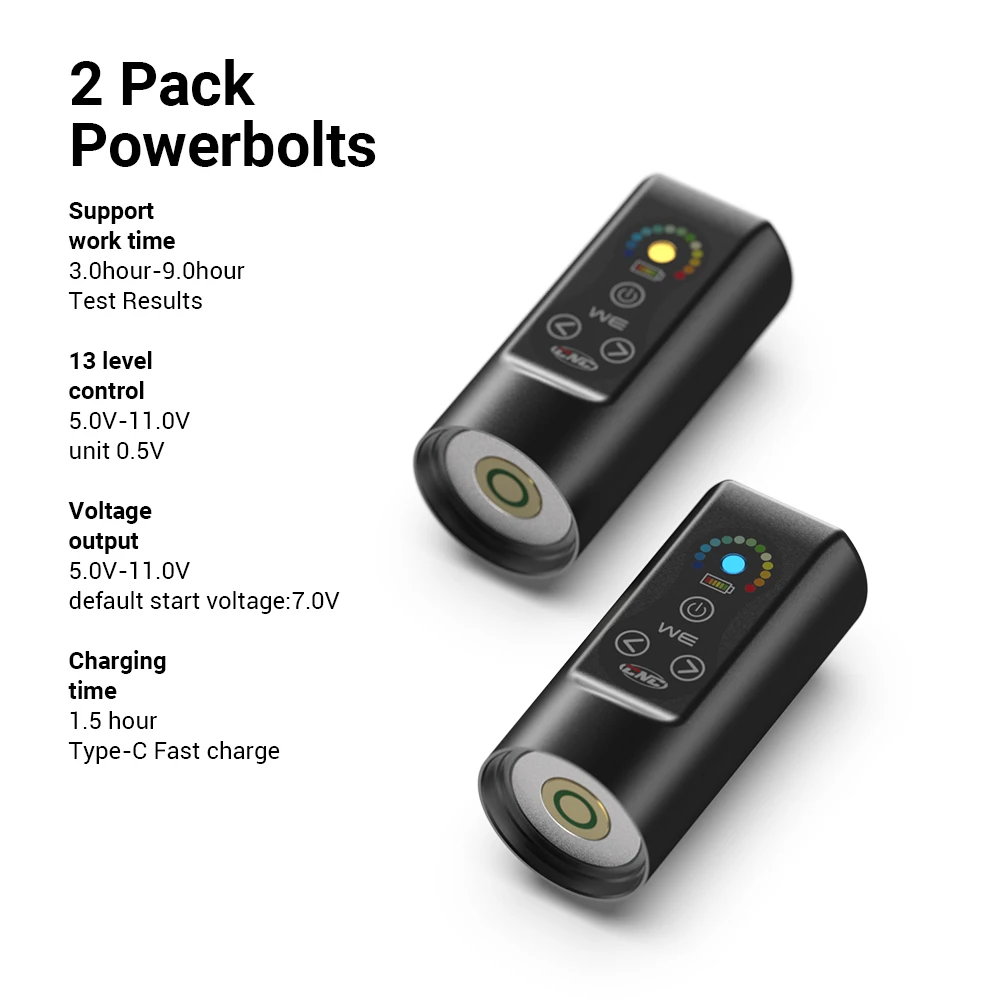

3. The double battery is matched, which is convenient for going out on business and avoids the predicament of being unable to tattoo due to external conditions. Power supply + handle drive The dual-module collocation is convenient for users to maintain and maintain the products in the later period.

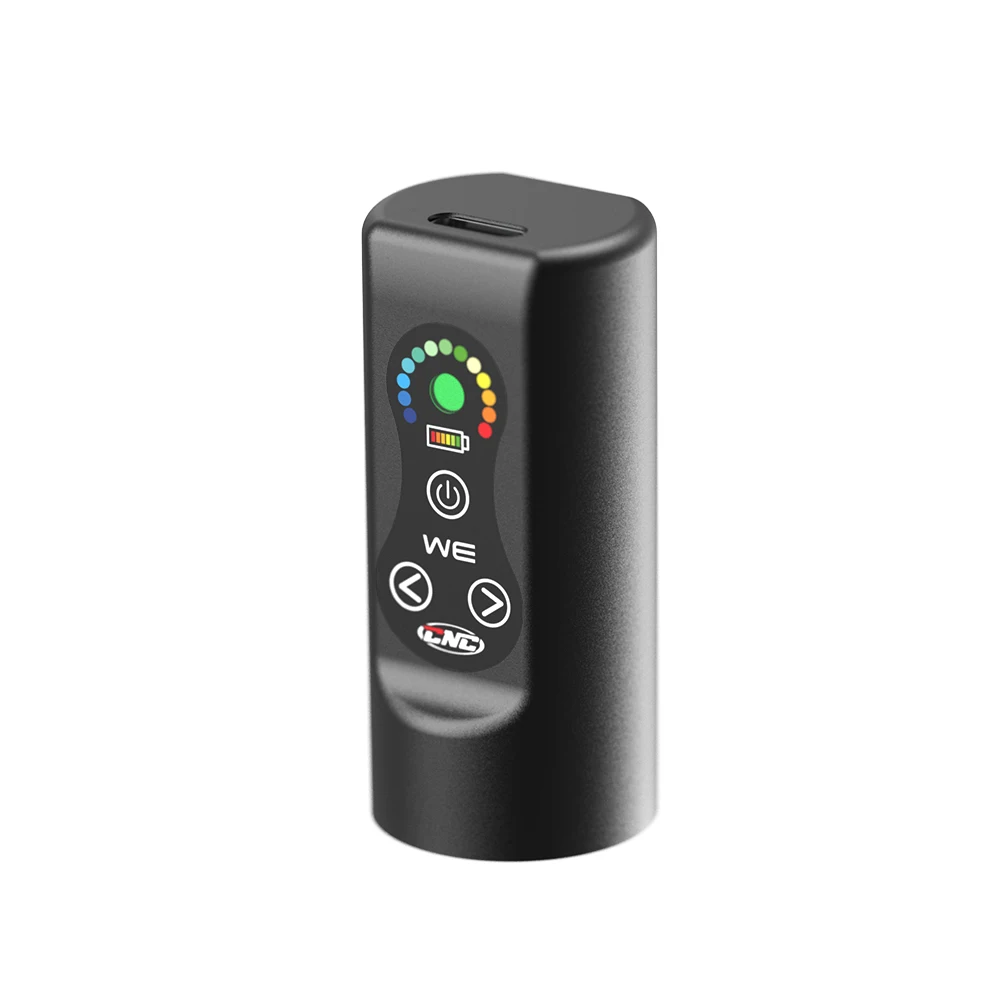

Product power function instructions:

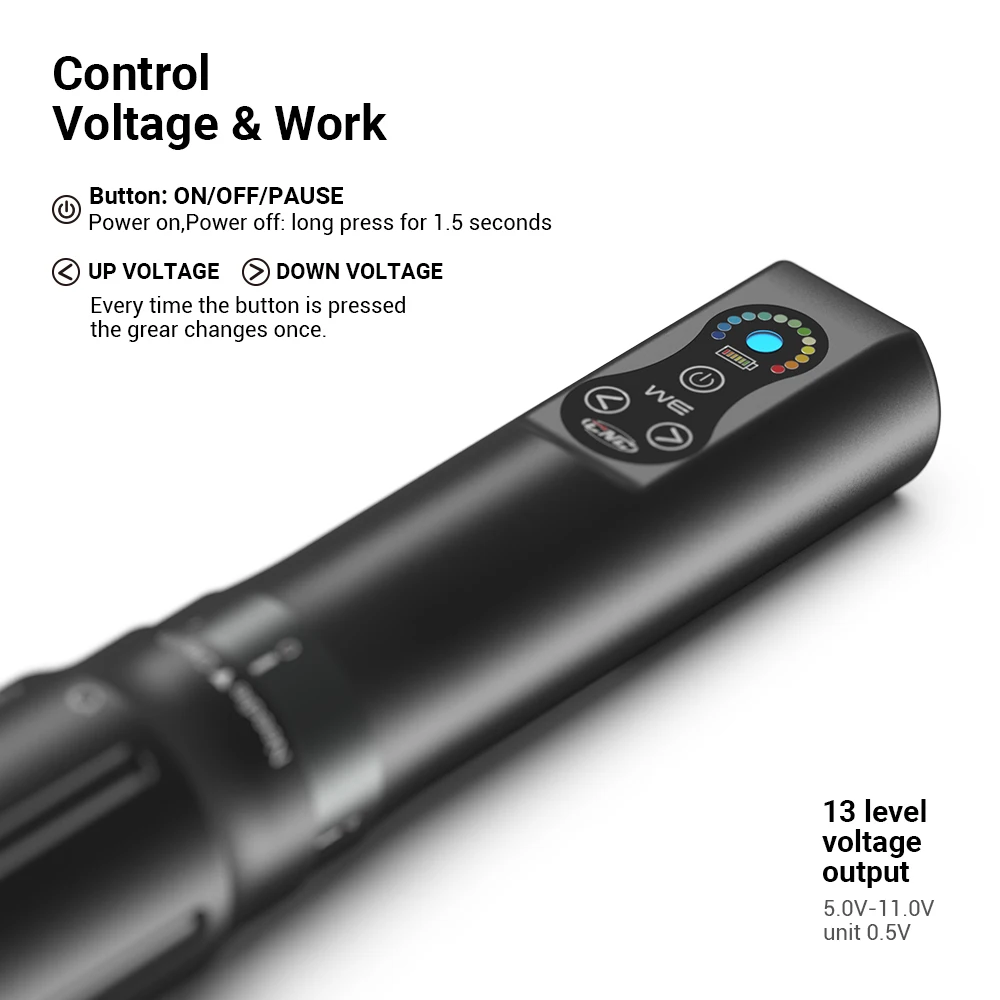

1. Power switch: Install the battery and long press the power switch to turn on, long press again to shut down, short press the power button to pause the function, and short press the power button again to restart. The default fifth gear is turned on, and the emerald light indicates.

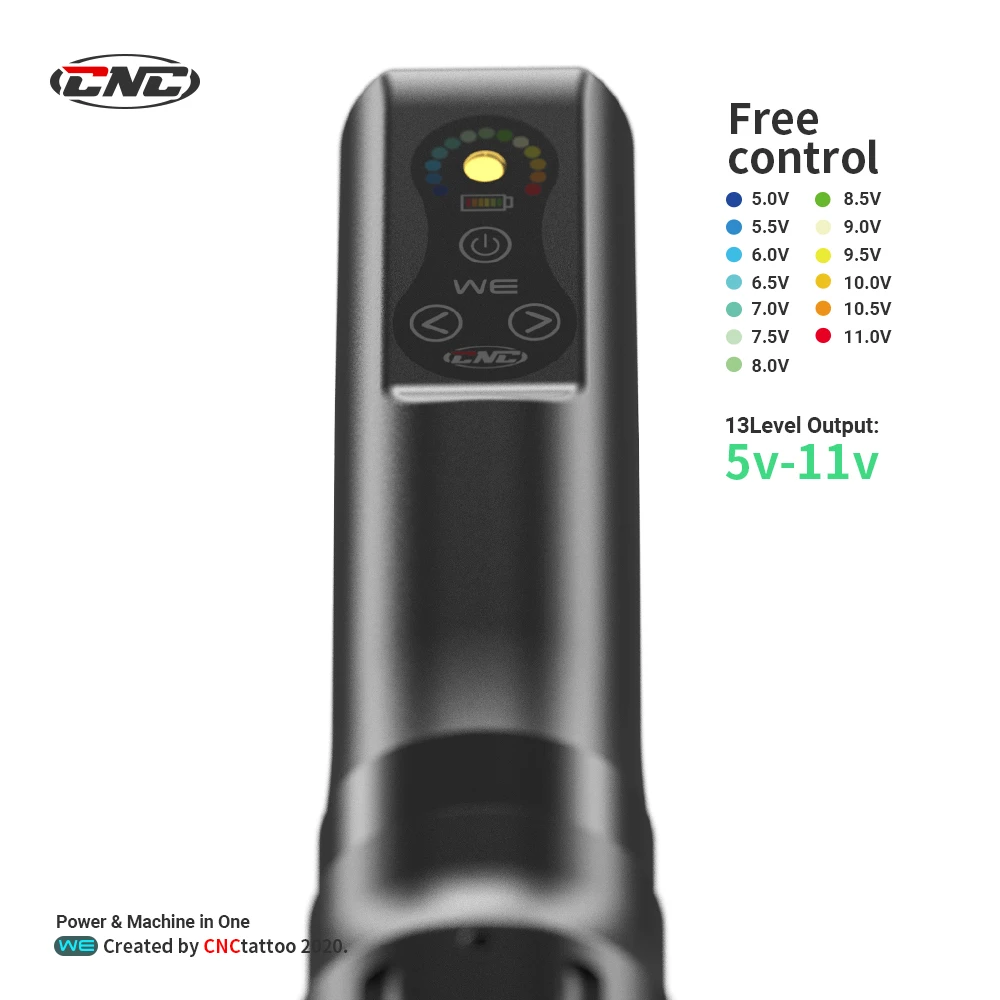

2. Up button to shift up button: each short press of the button to shift up, the first gear is the slowest gear azure blue, gear 2 sky blue, 3 lake blue, 4 sea blue, 5 emerald, 6 ginkgo, 7 Mint, 8 green eye, 9 malt yellow, 10 lemon, 11 mango, 12 fresh orange, 13, garnet red fastest gear, according to the speed you need to use, adjust the gear that suits you.

3. Down button downshift button: downshift once for each short press of the button.

4. Battery charging: Connect the charging cable and the battery to the USB plug and insert the charging adapter. The charging indicator starts to flash and enters the charging mode. During the charging process, the charging indicator has six colors from red to green. (The six color charging stage displays also represent battery power respectively, garnet red 0% orange 20% mango 40% lemon 60% grass core 80% green eye stone 100%).

5. When the battery voltage is lower than 3V, the red (garnet red) LED flashes in the mode, other LEDs do not work, and the motor has no function output, reminding that there is no power and the battery needs to be charged.

6. This power supply has overload and short circuit protection.

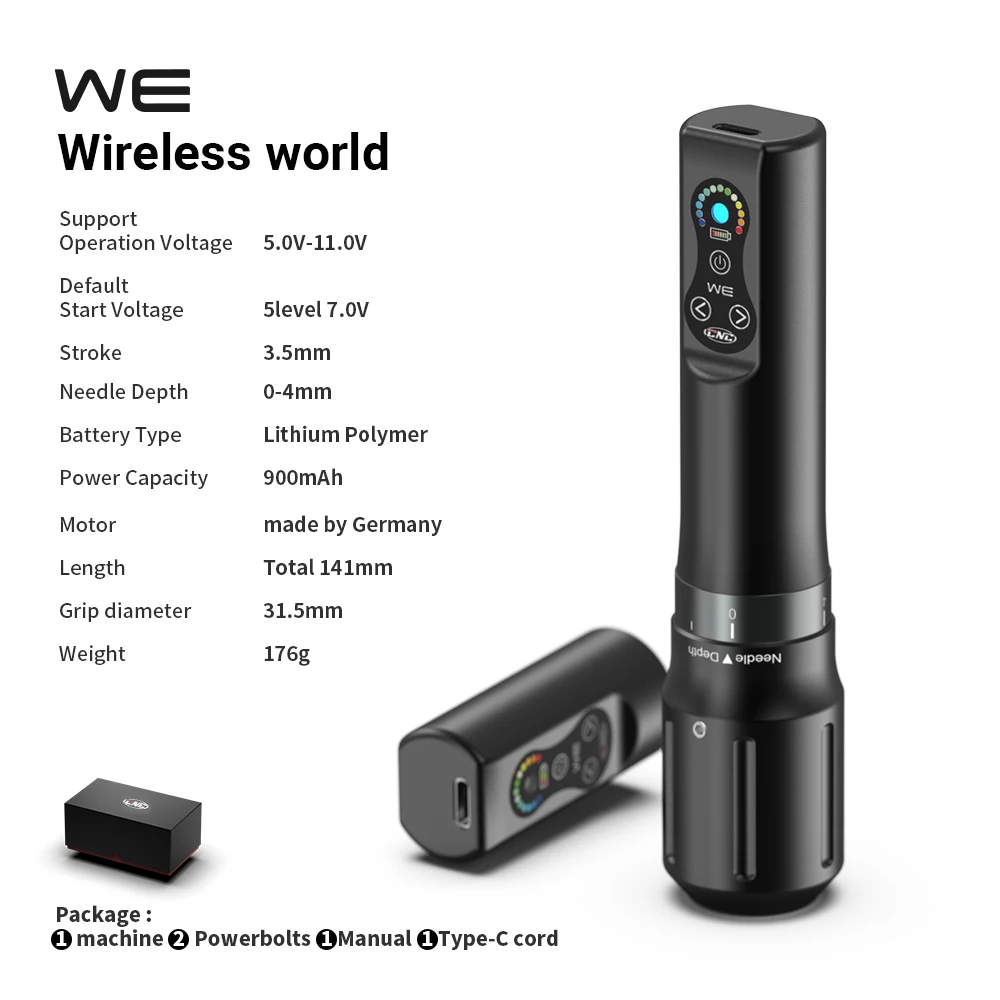

Performance parameters:

6. Charging adapter input voltage: 100-240V AC 50~60Hz

7. Rated power of charging adapter: 10W

8. Maximum output voltage: 5V 2A

9. Lithium polymer battery: 4.2V 2 and 900mAH

Additional function description:

1. Fully charged battery lasts 3.5H-5H

2. Charging time 1.5H (the power supply cannot work when charging)
