Single/Dual Shaft Micro N20 All Metal Gearbox Worm Gear Motor DC3V-12V 4rpm- 380rpm Slow Speed High Torque Engine
The applicable voltage of each motor is 3V-12V. In this voltage range, the higher the voltage, the higher the speed, the greater the torque. Type A has the slowest speed and the largest torque. Type D has the fastest speed and the smallest torque.

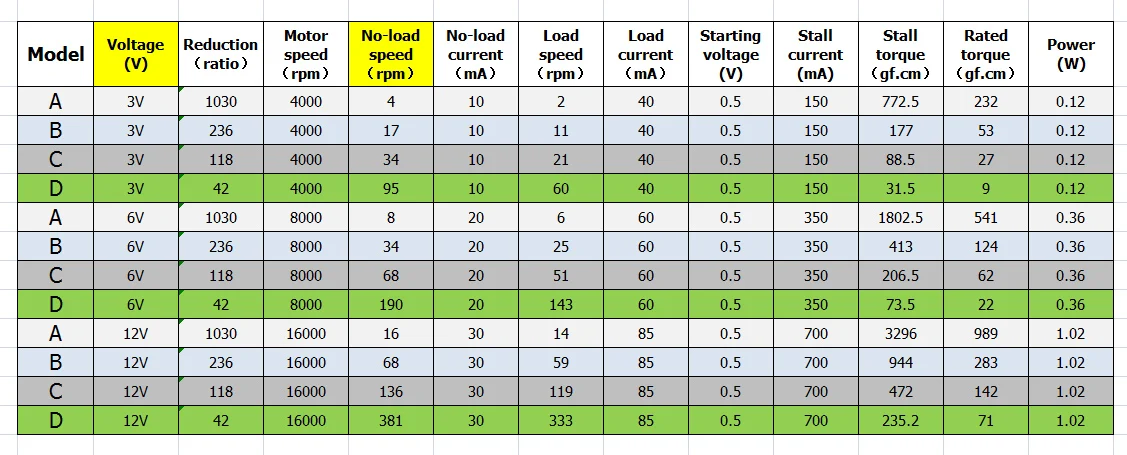

Specification:
Reduction ration:A(1030:1), B(236:1),C(118:1), D(42:1)
Voltage range: 3V-12V
Weight :12gSpeed error:±10%
Rotating speed: A＜B＜C＜D
Torque: A>B>C>D

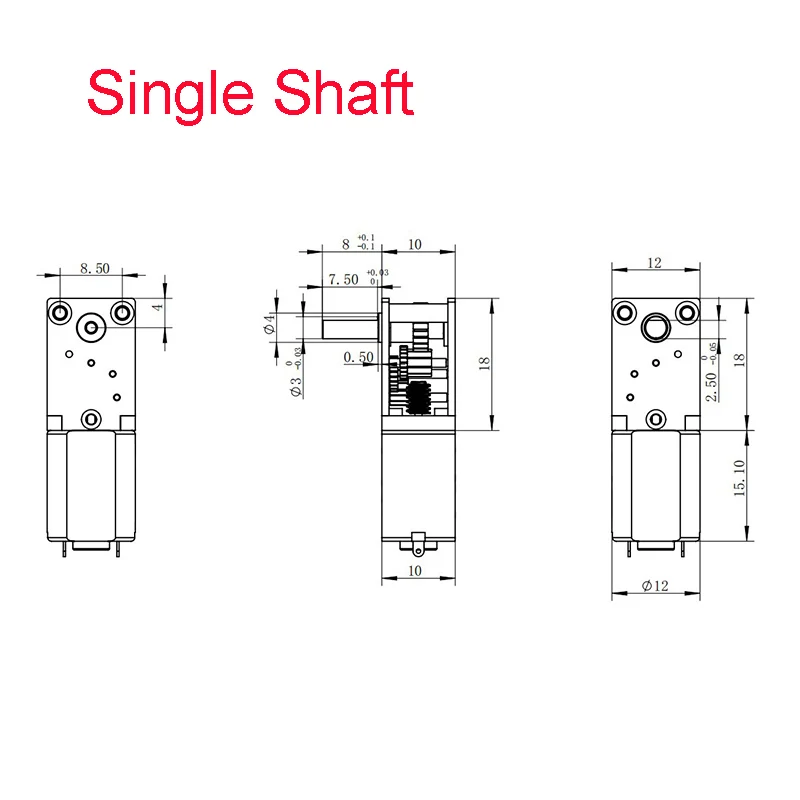

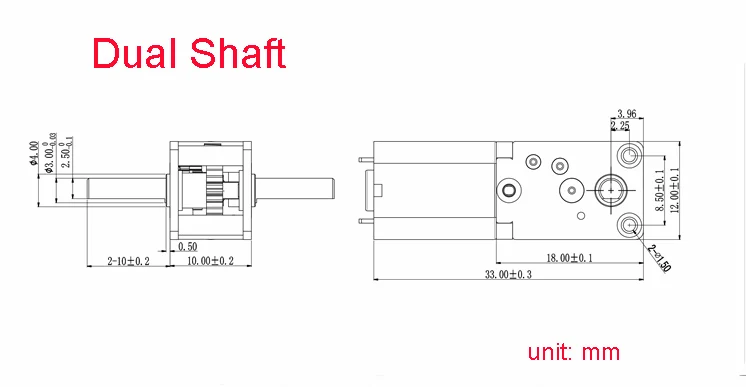

Shaft length: 7.5mm(Single Shaft),10mm(Dual Shaft)
Shaft diameter:3mm(2.5mm D Shaft)
We are the real original factory, all parameters/specification/size can be custom-made for your requirement. Talk with our sales engineers team now ~
Email: chinaok321@gmail.com | Skype: chinaok321 | WhatsApp/WeChat/Mob: 8613713792667
Maxon Faulhaber Motor DC Motor China Manufacturer Factory Coreless Brushless Motor Electric Micro Motor BLDC Flat Brush Motor
Custom Coreless DC Motor Gearbox Brushless Brush Micro Electric Motor 2610 Small Vibrating Motor
DC Drive Rotary Tattoo Machine Motor DC Motor for Tattoo Pen Swiss Flat Motor Slotless Motor China Factory Manufacturer
Custom Range
Performance: customizable in continuous operation range
Ball Bearing: preload
Flange: standard front and real flange / custom flange
Axis: length / diameter / stepped shaft / double outlet shaft / hollow shaft
Application Scenarios:
DIRECT SELLING BY MANUFACTURER SUPPORT PROCESSING CUSTOMIZATION
Our products are widely used: label printer,label stripper,barcode printer, robot Electronic door locks,printers,electronic monitors,display shelves, counters, vending machines and automotive parts Intelligent kitchen and sanitation, household appliances, medical equipment, communication equipment, industrial equipment, instruments and meters,aviation models,many industries such as robot, personal care,security camera,digital electronics, our motor factory can meet different needs of customers customized.
